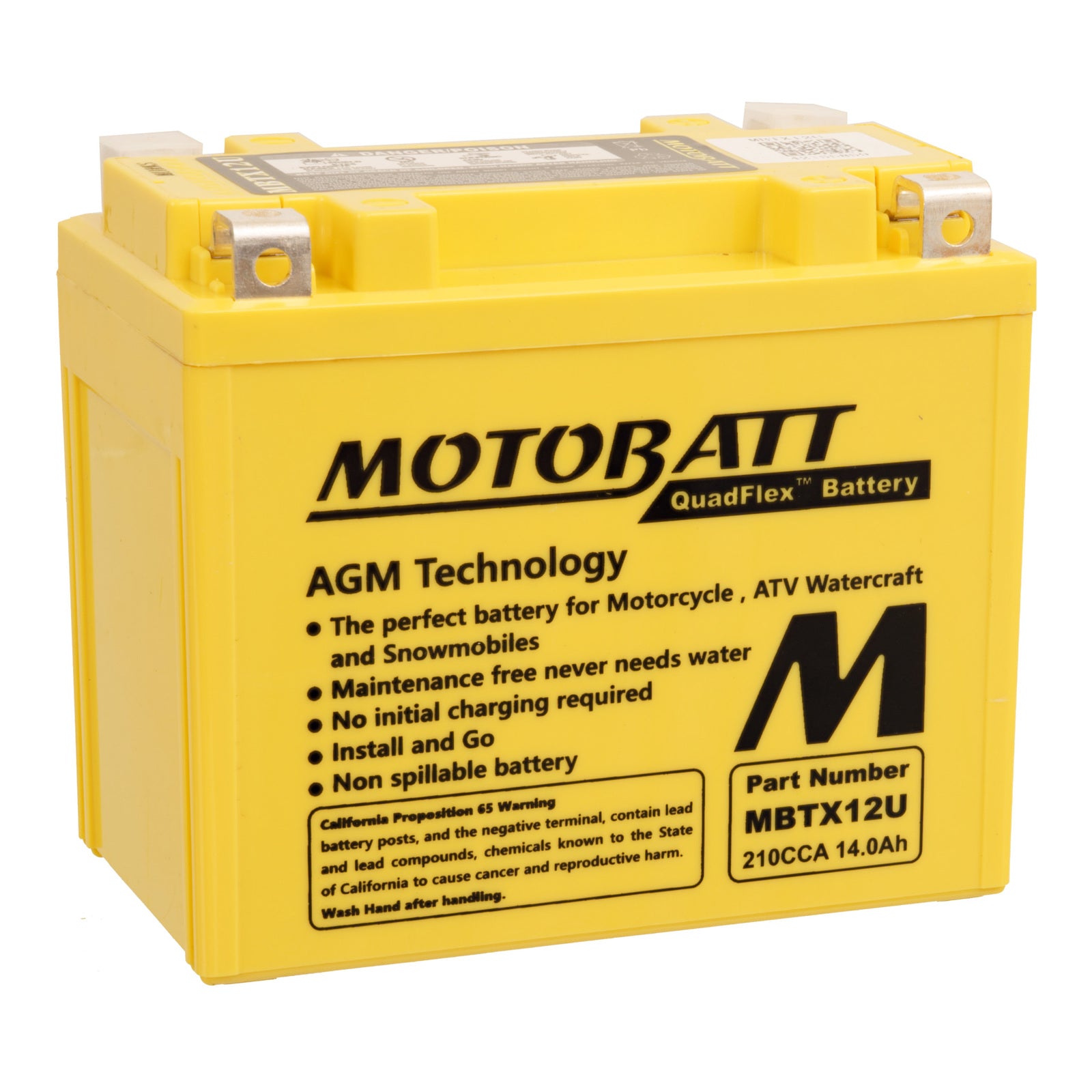

Motobatt Battery Quadflex AGM - MBTX12U

Motobatt MBTX12U QUADFLEX AGM Factory Activated

Replaces YB12B-B2/YTX12-BS/YTX14-BS/YTX14H-BS/YTX14L-BS/KMX14-BS/YTX15L-BS

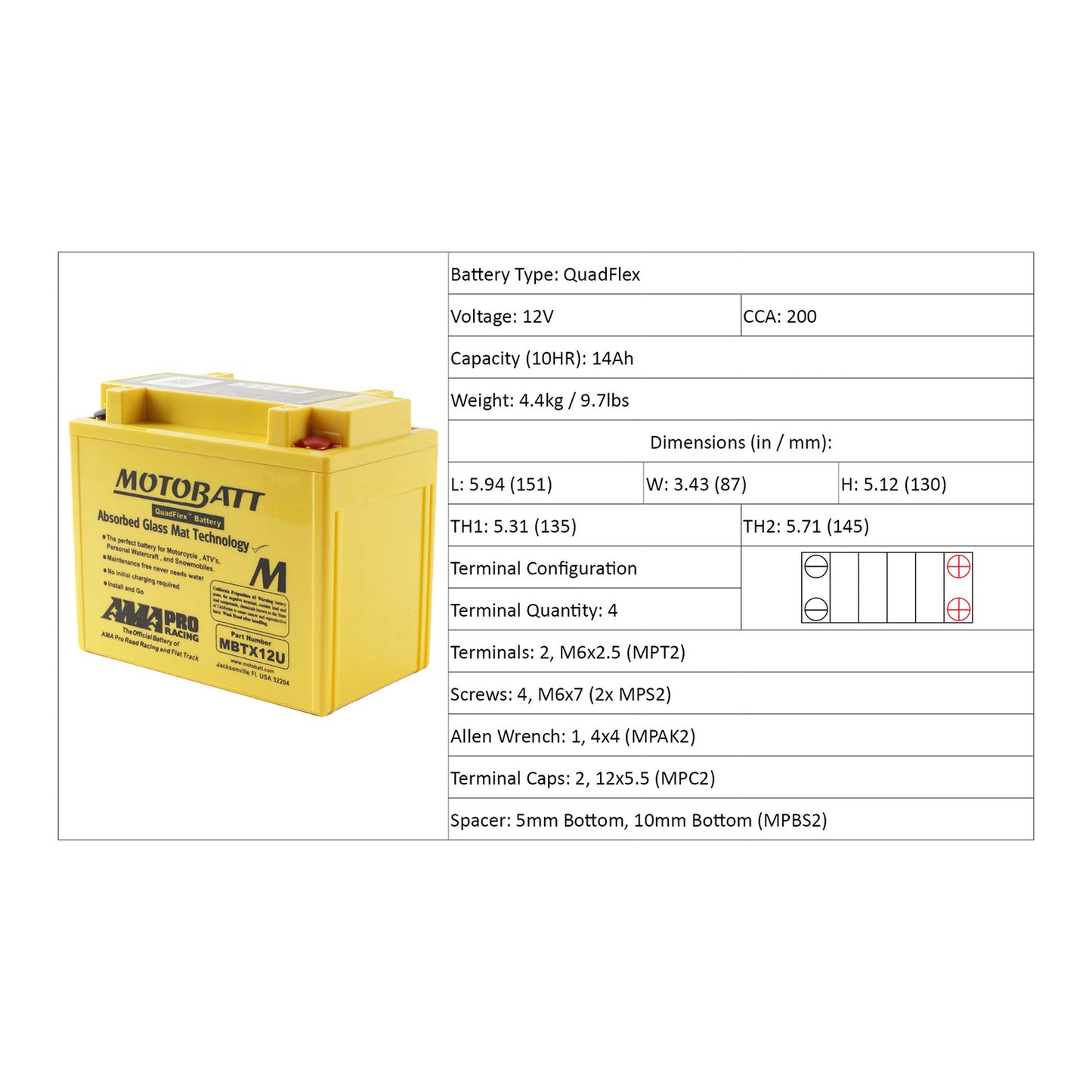

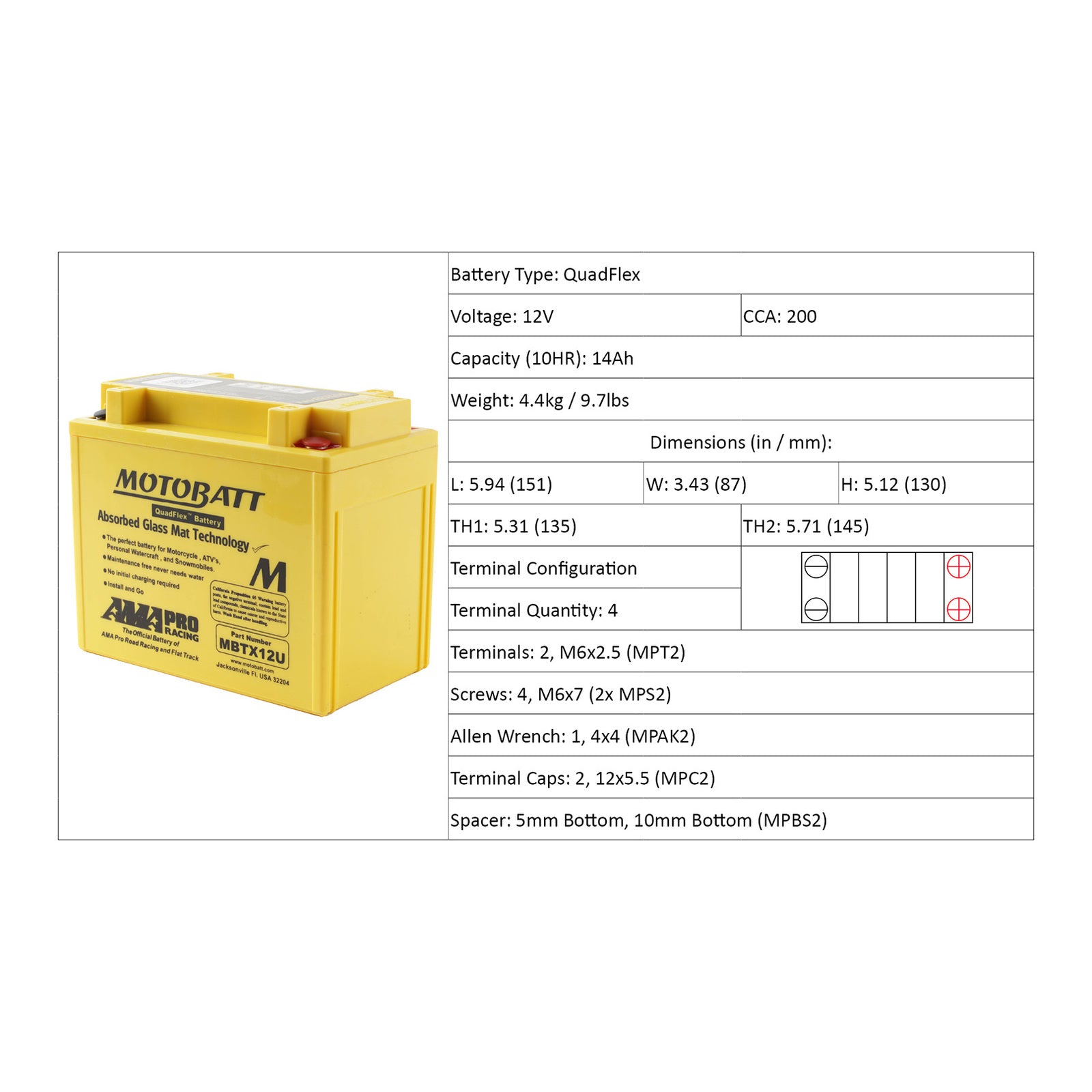

Battery Type	MBTX12U
Voltage	12V CCA: 200
Capacity (10HR)	14Ah
Weight:	4.40kg /9.7Ibs
Dimensions (in / mm)	L: 5.94(151) W: 3.43(87) H: 5.12(130) TH1: 5.31(135) TH2: 5.71(145)
Assembly Figure Terminal Locations:	4
Terminals:	2, M6x2.5 (Part#MPT2)
Screws:	4, M6X7 (Part#2xMPS2)
Allen Wrench:	1, 4x4 (Part#MPAK2)
Terminal Caps:	4, 12x5.5 (Part#2xMPC2)
Spacer:	2, Bottom (Part: MPBS4) Spacer 1 = 5mm, Spacer 2 =1 0mm Total = 15mm

The perfect battery for Motorcycles, ATV's, PWC & Snowmobiles. Up to 20% higher Cranking Power! No acid to spill! Available via courier delivery! Featuring AGM Technology*

TECHNICAL DATA:

Motobatt PowerSport Batteriesutilize the latest AGM*and Quadflex™ Technology. AGM* (Absorbed Glass Mat) design uses highly porous microfibre separators, which completely absorb and trap the electrolyte. Quadflex™ (Unique 4 Terminal Design) allows Motobatt Batteries to be installed in many different powersport applications (NB: Some modelshave 2 terminals - as required).

Motobatt Batteries also include height adjuster/sallowing fitments toseveral different models,replacing numerous conventional stylebatteries.

Motobatt Batteries have avery low self-discharge -from 1 - 3% per month!

MOTOBATT BATTERIES ARE AVAILABLE VIA COURIER DELIVERY AS THEY CONTAIN NO LIQUID ACID!

REPLACES: CNCBTX12-BS, CNCBTX14-BS * MotoBatt Quadflex™ Power Sport Batteries utilize the latest AGM (Absorbed Glass Mat) technology. * MotoBatt Batteries can have up to 20% more cranking power than equivalent conventional batteries. * MotoBatt Batteries have a unique 4 Terminal Design (Quadflex™) which allows MotoBatt Batteries to be installed in many different powersport applications. (NB: Some models have 2 terminals – as required). * MotoBatt Batteries cannot spill, even if they are broken because they contain NO LIQUID ACID.

MotoBatt being a premium Absorbed Glass Mat battery is superior by design. AGM batteries have been used in demanding military and off -road applications for many years. The sealed, glass mat design has many longevity and reliability based benefits.

Each plate in the battery is wrapped in a fiberous glass matting which not only absorbs all liquid electrolyte but keeps the plates separated in a cushioned environment. This stops the plates from vibrating which can breakdown the plate and cause short circuits between the plates or break plate welds which result in battery failure. The thick, heavy plates used in MotoBatt designs really make the difference here.

AGM batteries also have a much lower inherent self discharge rate than wet flooded types. And, as a higher amp hour AGM battery, the MotoBatt battery can also discharge more deeply and recover repeatedly under vehicle alternator charge or through maintenance charging. A standard flooded cell battery is not capable of withstanding this type of cycling, without pre-mature failure.

Your Motobatt is a Factory Activated battery. It comes to you pre-conditioned and fully charged for optimum performance and ready to install out of the box. 80% of early PowerSports battery failure is caused by faulty activation of the dry battery plates. Additionally, you never have to mess with acid or top up fluid levels or remove corrosion from the terminals caused by gassing; common with standard flooded battery types.

MOTOBATT BATTERIES ARE AVAILABLE VIA COURIER DELIVERY AS THEY CONTAIN NO LIQUID ACID!

For cross references, check the 'Replacement for' tab.

Specifications:

Voltage: 12V
CCA: 200
Capacity: 14Ah
Weight: 4.4kg (9.7lbs)
Dimensions: 151 x 87 x 130mm (5.94 x 3.43 x 5.12)
Terminal Height 1: 135mm (5.31)
Terminal Height 2: 145mm (5.71)
Terminals: 2, M6x2.5 (MPT2)
Screws: 4, M6x7 (2x MPS2)
Allen Wrench: 1, 4x4 (MPAK2)
Terminal Caps: 2, 12x5.5 (MPC2)
Spacer: 5mm Bottom, 10mm Bottom (MPBS2)

Founded in 2008, Motobatt is a manufacturer of premium Powersports batteries, battery chargers and battery related accessories. Motobatt is the creator and holds patents all over the world for the Motobatt 4 terminal battery that facilitates flexible battery installation across a wide variety of vehicles while maintaining an OE like fit.

Specifically designed for motorcycles, Motobatt batteries offer much higher cranking power and higher amp hour ratings. Their batteries can withstand constant starting without draining the battery or causing long term cell damage. Their unique terminal design offers far greater versatility, allowing them to fit a wider range of applications which enables stockists to carry a narrower range of batteries for a large market, which makes it easier for retail customers to find a battery to fit their vehicle, in stock.

Quadflex:

Motobatt batteries are manufactured from Absorbed Glass Mat (AGM), this design has revolutionised the motorcycle, ATV, lawnmower and small engine industry. QuadFlex provides a unique four-terminal design with two positives, two negatives along with height spacers that permit an almost universal fit. All Motobatt AGM Batteries are maintenance free, non-hazardous, non-spill, charged and ready to install directly out of the box.

Each plate in the battery is wrapped in a fiberous glass matting which not only absorbs all liquid electrolyte but keeps the plates separated in a cushioned environment. This stops the plates from vibrating which can breakdown the plate and cause short circuits between the plates or break plate welds which result in battery failure. The thick, heavy plates used in Motobatt designs really make the difference.

AGM batteries also have a much lower inherent self-discharge rate than wet flooded types. And, as a higher amp hour AGM battery, the Motobatt battery can also discharge more deeply and recover repeatedly under the vehicle alternator charge or through maintenance charging. A standard flooded cell battery is not capable of withstanding this type of cycling without premature failure.

Your Motobatt is a Factory Activated battery, it comes to you pre-conditioned and fully charged for optimum performance and ready to install out of the box. 80% of early Powersports battery failure is caused by faulty activation of the dry battery plates. Additionally, you never have to mess with acid or top up fluid levels or remove corrosion from the terminals caused by gassing, which are all common with standard flooded battery types.

Features:

• Patented QuadFlex multi-fit terminals
• Absorbed Glass Mat technology – ensures greater protection against vibration and gives a longer lifecycle
• Fully sealed – Can be mounted and transported in any position
• No initial charging – Install and go, charged right out of the box
• Maintenance Free – No messy acid to worry about
• 20% more cold cranking amps (CCA)
• Easy accessory connection with multiple terminals

MOTOBATT BATTERIES ARE AVAILABLE VIA COURIER DELIVERY AS THEY CONTAIN NO LIQUID ACID!

Specifications:

Voltage: 12V
CCA: 200
Capacity: 14Ah
Weight: 4.4kg (9.7lbs)
Dimensions (LxWxH): 151 x 87 x 130mm (5.94 x 3.43 x 5.12)
Terminal Height 1: 135mm (5.31)
Terminal Height 2: 145mm (5.71)
Terminals: 2, M6x2.5 (MPT2)
Screws: 4, M6x7 (2x MPS2)
Allen Wrench: 1, 4x4 (MPAK2)
Terminal Caps: 2, 12x5.5 (MPC2)
Spacer: 5mm Bottom, 10mm Bottom (MPBS2)

Founded in 2008, Motobatt is a manufacturer of premium Powersports batteries, battery chargers and battery related accessories. Motobatt is the creator and holds patents all over the world for the Motobatt 4 terminal battery that facilitates flexible battery installation across a wide variety of vehicles while maintaining an OE like fit.

Specifically designed for motorcycles, Motobatt batteries offer much higher cranking power and higher amp hour ratings. Their batteries can withstand constant starting without draining the battery or causing long term cell damage. Their unique terminal design offers far greater versatility, allowing them to fit a wider range of applications which enables stockists to carry a narrower range of batteries for a large market, which makes it easier for retail customers to find a battery to fit their vehicle, in stock.

Quadflex:

Motobatt batteries are manufactured from Absorbed Glass Mat (AGM), this design has revolutionised the motorcycle, ATV, lawnmower and small engine industry. QuadFlex provides a unique four-terminal design with two positives, two negatives along with height spacers that permit an almost universal fit. All Motobatt AGM Batteries are maintenance free, non-hazardous, non-spill, charged and ready to install directly out of the box.

Each plate in the battery is wrapped in a fiberous glass matting which not only absorbs all liquid electrolyte but keeps the plates separated in a cushioned environment. This stops the plates from vibrating which can breakdown the plate and cause short circuits between the plates or break plate welds which result in battery failure. The thick, heavy plates used in Motobatt designs really make the difference.

AGM batteries also have a much lower inherent self-discharge rate than wet flooded types. And, as a higher amp hour AGM battery, the Motobatt battery can also discharge more deeply and recover repeatedly under the vehicle alternator charge or through maintenance charging. A standard flooded cell battery is not capable of withstanding this type of cycling without premature failure.

Your Motobatt is a Factory Activated battery, it comes to you pre-conditioned and fully charged for optimum performance and ready to install out of the box. 80% of early Powersports battery failure is caused by faulty activation of the dry battery plates. Additionally, you never have to mess with acid or top up fluid levels or remove corrosion from the terminals caused by gassing, which are all common with standard flooded battery types.

Features:

• Patented QuadFlex multi-fit terminals
• Absorbed Glass Mat technology – ensures greater protection against vibration and gives a longer lifecycle
• Fully sealed – Can be mounted and transported in any position
• No initial charging – Install and go, charged right out of the box
• Maintenance Free – No messy acid to worry about
• 20% more cold cranking amps (CCA)
• Easy accessory connection with multiple terminals

MOTOBATT BATTERIES ARE AVAILABLE VIA COURIER DELIVERY AS THEY CONTAIN NO LIQUID ACID!

Specifically designed for motorcycles, Motobatt batteries offer much higher cranking power and higher amp hour ratings. Their batteries can withstand constant starting without draining the battery or causing long-term cell damage. Their unique terminal design offers far greater versatility, allowing them to fit a wider range of applications which enables stockists to carry a narrower range of batteries for a large market, which makes it easier for retail customers to find a battery to fit their vehicle, in stock.

Motobatt batteries are manufactured from Absorbed Glass Mat (AGM), this design has revolutionised the motorcycle, ATV, lawnmower and small engine industry. QuadFlex provides a unique four-terminal design with two positives, two negatives along with height spacers that permit an almost universal fit. All Motobatt AGM Batteries are maintenance-free, non-hazardous, non-spill, charged and ready to install directly out of the box.

Each plate in the battery is wrapped in a fibrous glass matting which not only absorbs all liquid electrolytes but keeps the plates separated in a cushioned environment. This stops the plates from vibrating which can break down the plate and cause short circuits between the plates or break plate welds which results in battery failure. The thick, heavy plates used in Motobatt designs really make the difference.

AGM batteries also have a much lower inherent self-discharge rate than wet flooded types. And, as a higher amp hour AGM battery, the Motobatt battery can also discharge more deeply and recover repeatedly under the vehicle alternator charge or through maintenance charging. A standard flooded cell battery is not capable of withstanding this type of cycling without premature failure.

Your Motobatt is a Factory Activated battery, it comes to you pre-conditioned and fully charged for optimum performance and ready to install out of the box. 80% of early Powersports battery failure is caused by faulty activation of the dry battery plates. Additionally, you never have to mess with acid or top up fluid levels or remove corrosion from the terminals caused by gassing, which are all common with standard flooded battery types.

Specifications:

• Voltage: 12V
• C(10) Ah: 14
• C(20) Ah: 14.8
• CCA (Cold Cranking Amps): 210A
• MCA (Marine Cranking Amps): 275A
• PHCA (Pulse Hot Cranking Amps): 415A
• Weight: 4.4kg (9.7lbs)
• Dimensions (LxWxH): 151 x 87 x 130mm (5.94 x 3.43 x 5.12)
• Terminal Height 1: 135mm (5.31)
• Terminal Height 2: 145mm (5.71)
• Terminals: 2, M6x2.5 (MPT2)
• Screws: 4, M6x7 (2x MPS2)
• Allen Wrench: 1, 4x4 (MPAK2)
• Terminal Caps: 2, 12x5.5 (MPC2)
• Spacer: 5mm Bottom, 10mm Bottom (MPBS2)

Features:

• Patented QuadFlex multi-fit terminals.
• Absorbed Glass Mat technology – ensures greater protection against vibration and gives a longer lifecycle.
• Fully sealed – Can be mounted and transported in any position.
• No initial charging – Install and go, charged right out of the box.
• Maintenance Free – No messy acid to worry about.
• 20% more cold cranking amps (CCA).
• Easy accessory connection with multiple terminals.

Motobatt batteries are available via courier delivery as they contain no liquid acid!
