Generator Stator Suzuki VZR1800 '06-'19 (RM01596)

Name: Generator Stator Suzuki VZR1800 '06-'19 (RM01596)
Brand: RMSTATOR
SKU: RMS01596
Price: 439.99 AUD
Availability: InStock

RMS01596

Available to order

$439.99

Shipping calculated at checkout.

Supplier order. Not held in our store. After payment we confirm the exact item with our supplier, have it delivered to us in Brisbane, check it and dispatch it to you. If it turns out to be unavailable we tell you straight away and refund that item in full.
Delivery, Australia-wide. Standard delivery $11, free on orders from $100. Express $15. Exact charges are shown at checkout. Shipping policy
30-day returns on unused items in original packaging (some exclusions). Returns policy
Fitment: fits only the model(s) and years stated in the product name or fitment section. Not sure? Email us your bike's make, model and year and we'll check before you order.

Question about this product?

We're happy to help.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

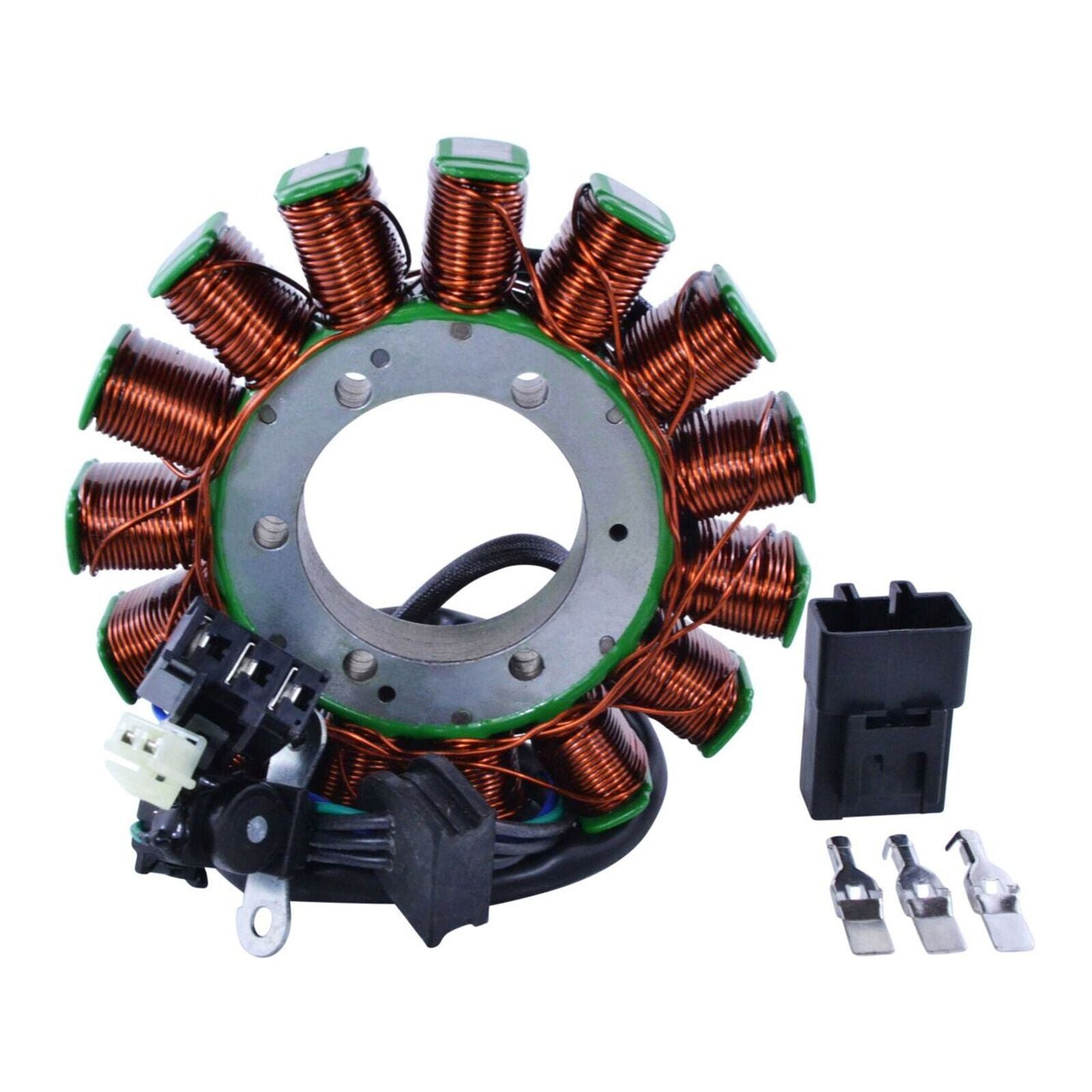

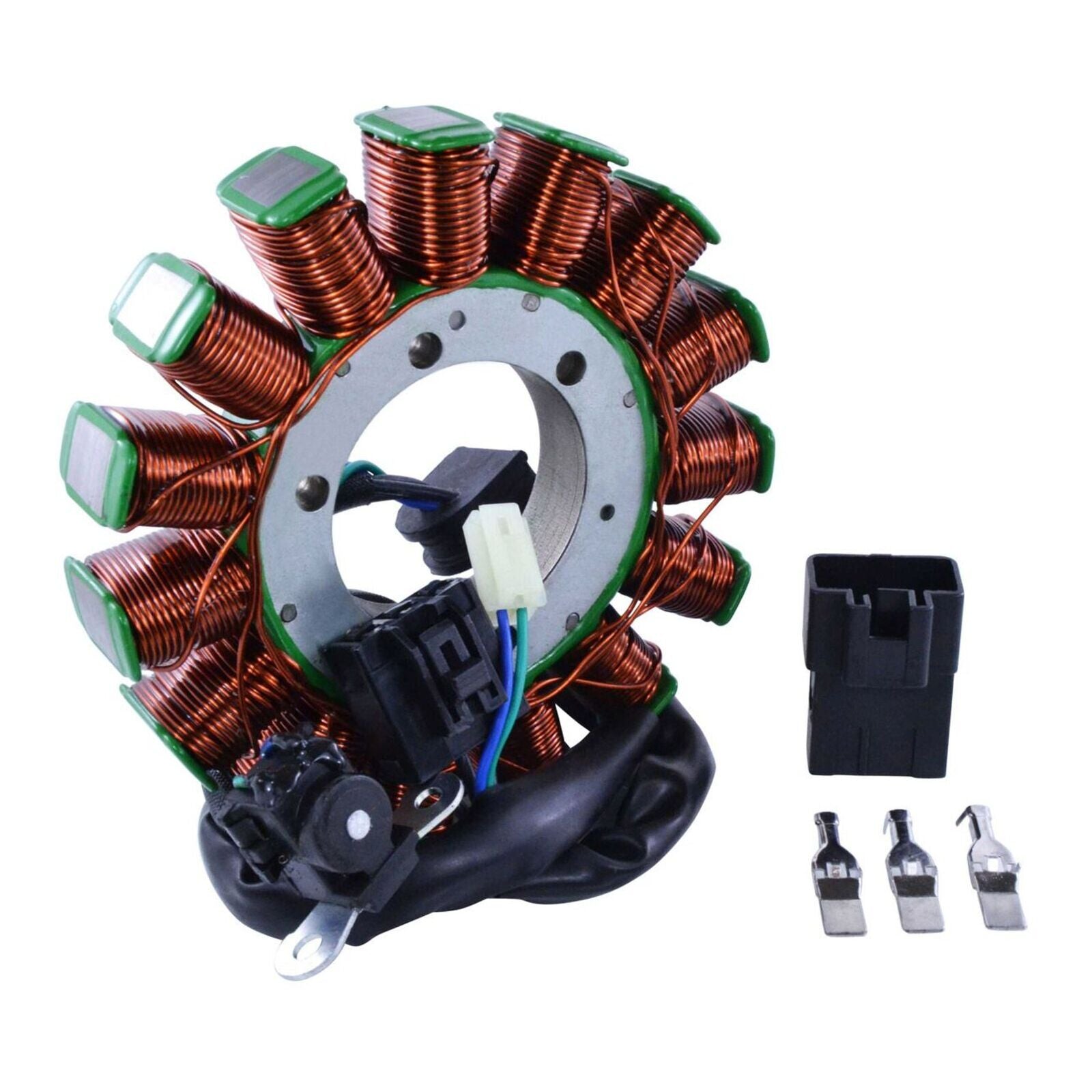

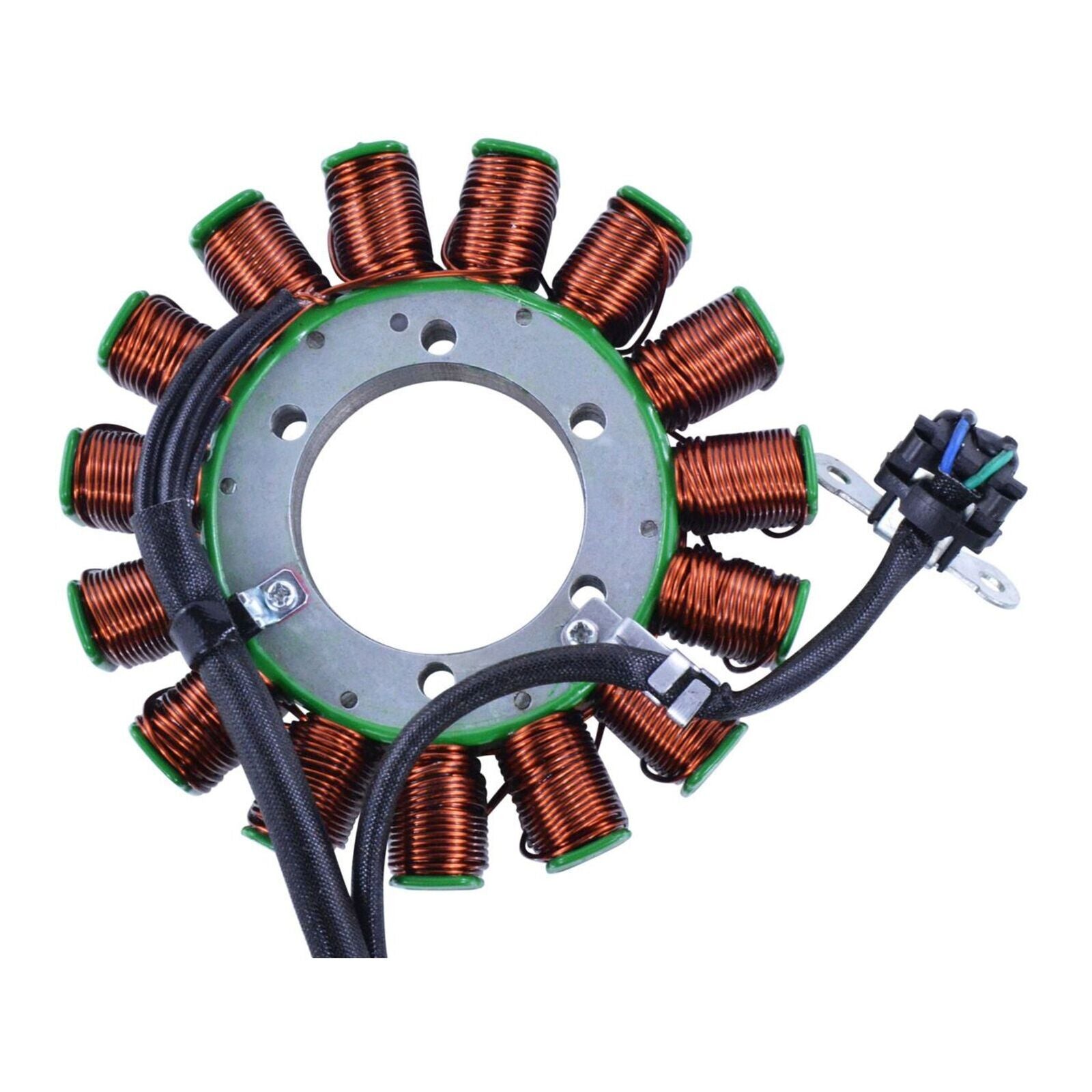

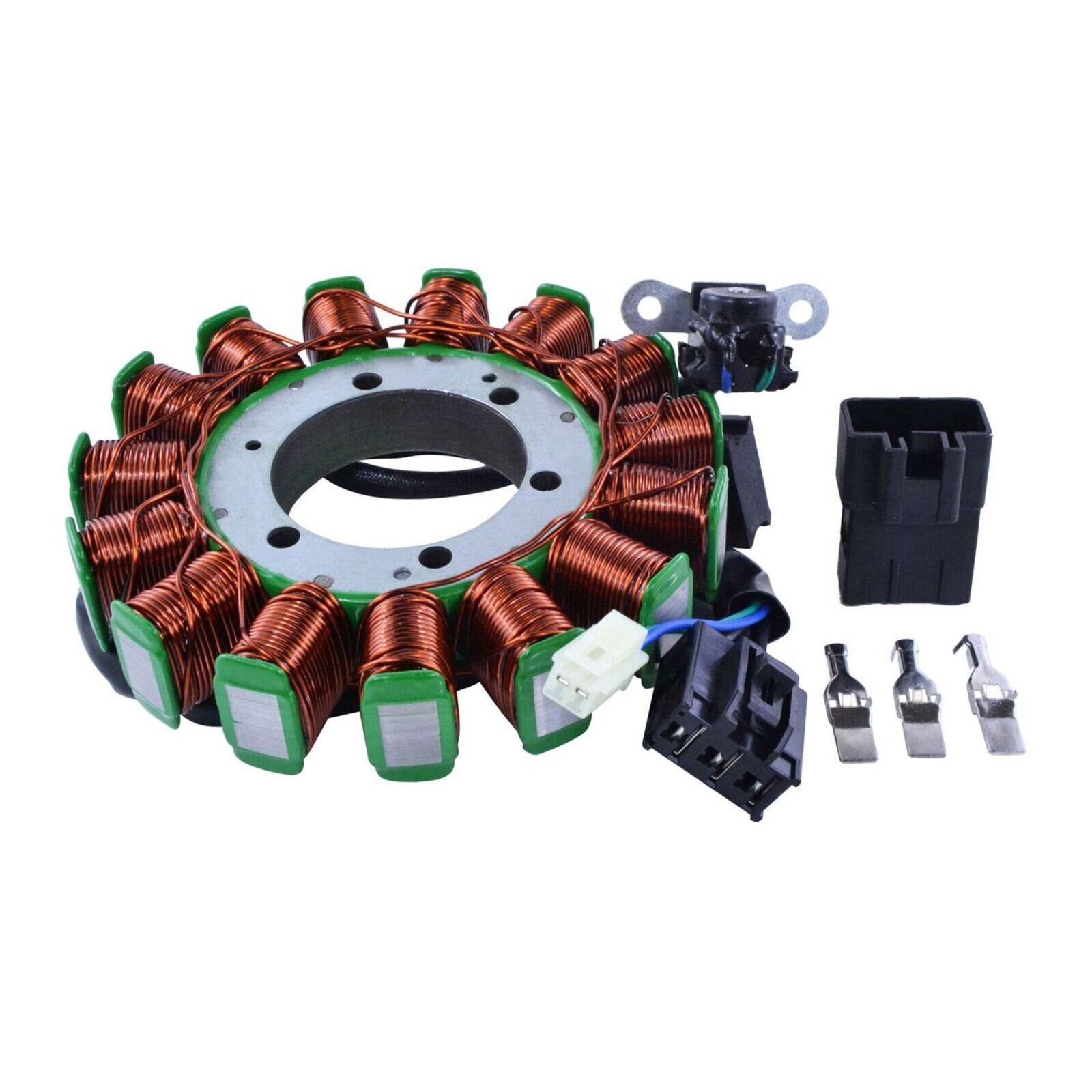

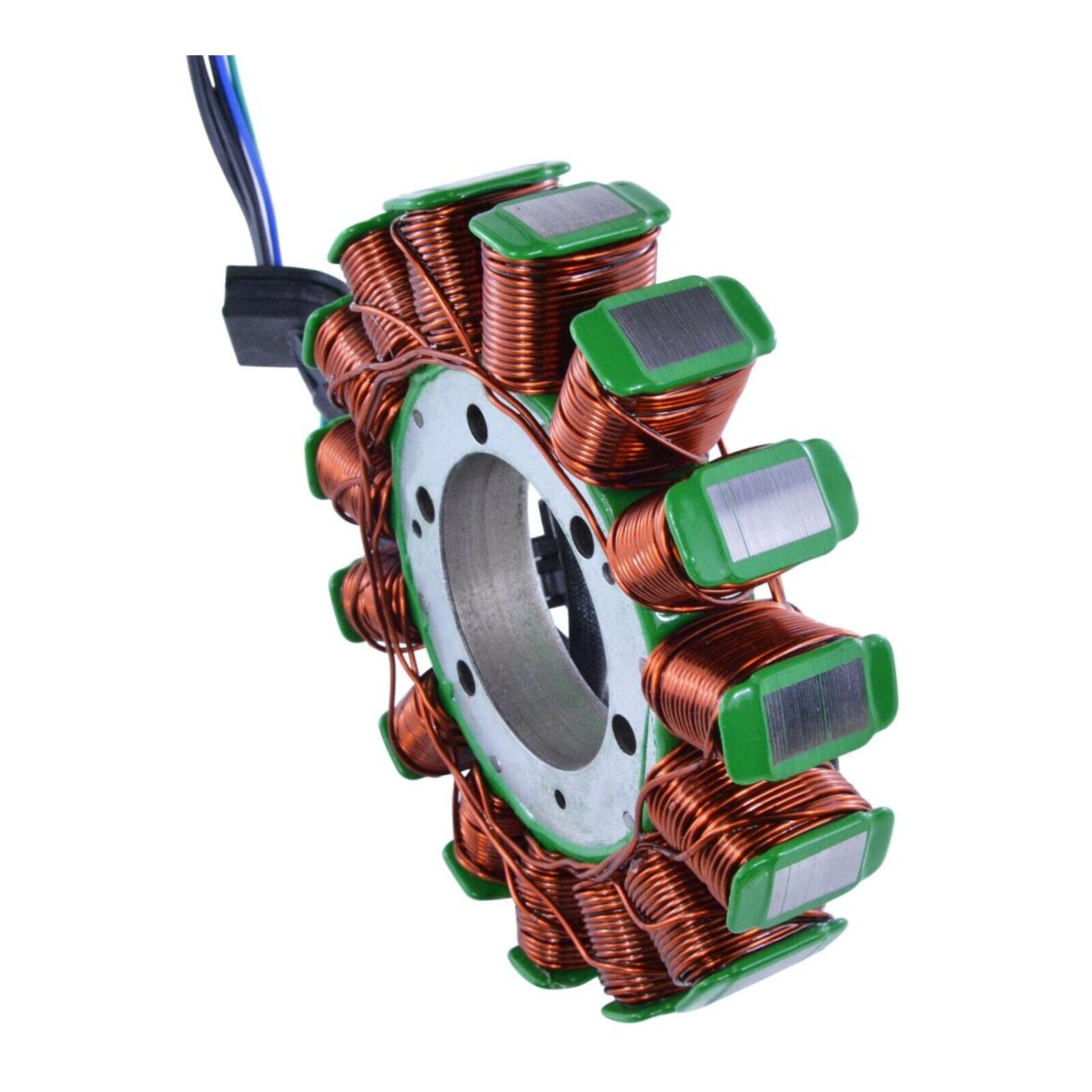

Brand new aftermarket generator stator. RM has even included the opposite connector (main harness side) which are a major cause for repetitive electrical issues.

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Highest-grade lamination materials.

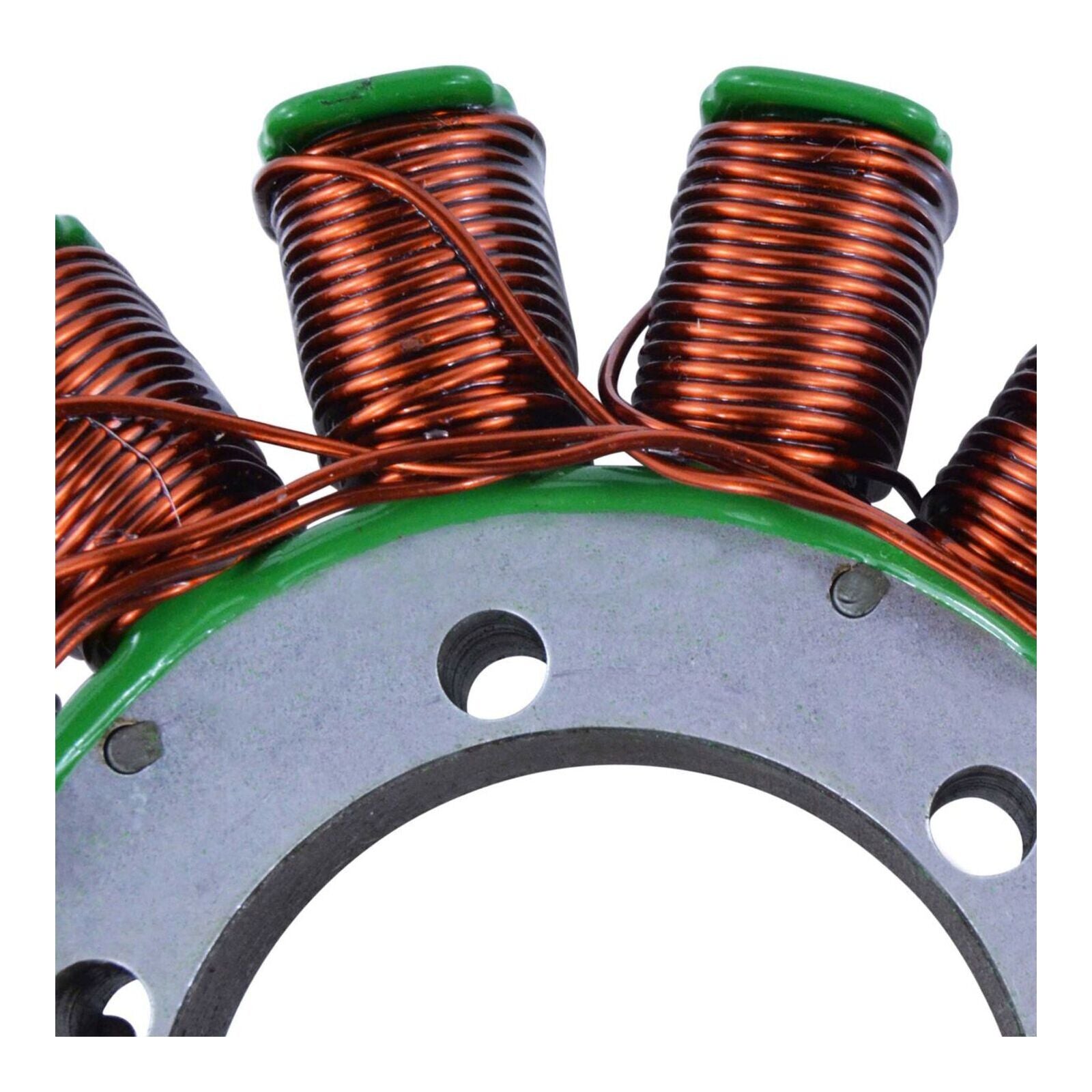

Highest grade copper windings, resistant to 200 degrees Celsius.

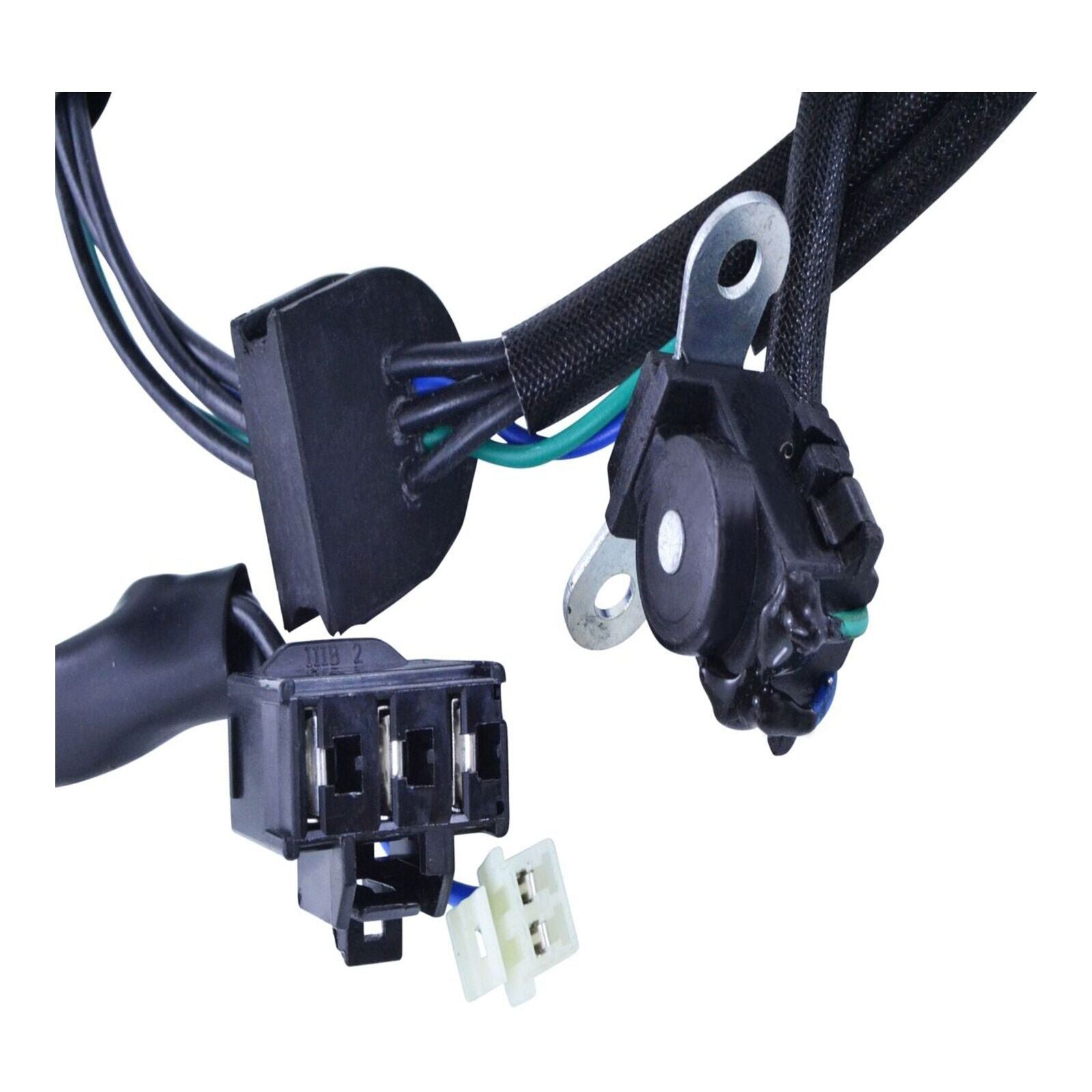

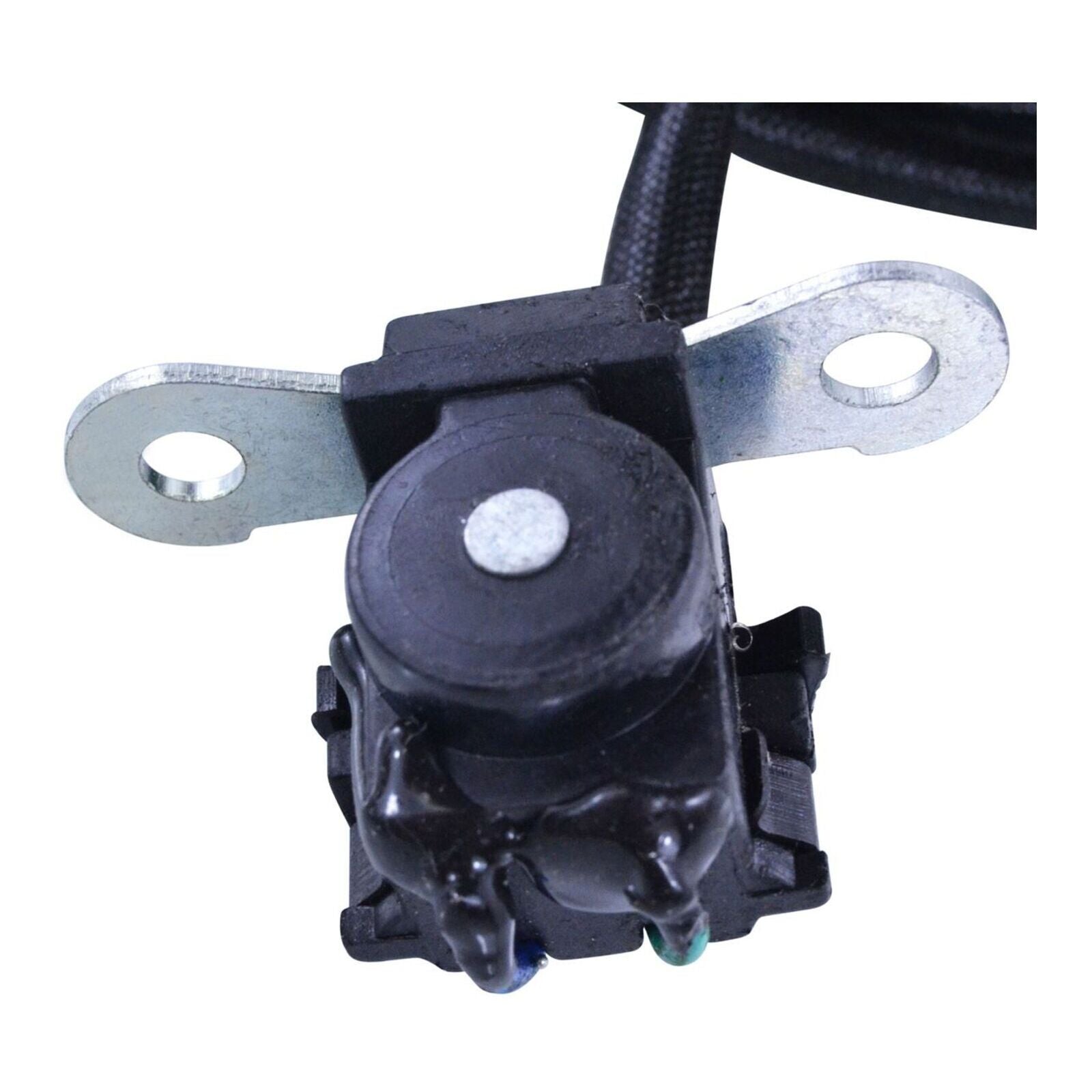

Pick up pulsar coil included.

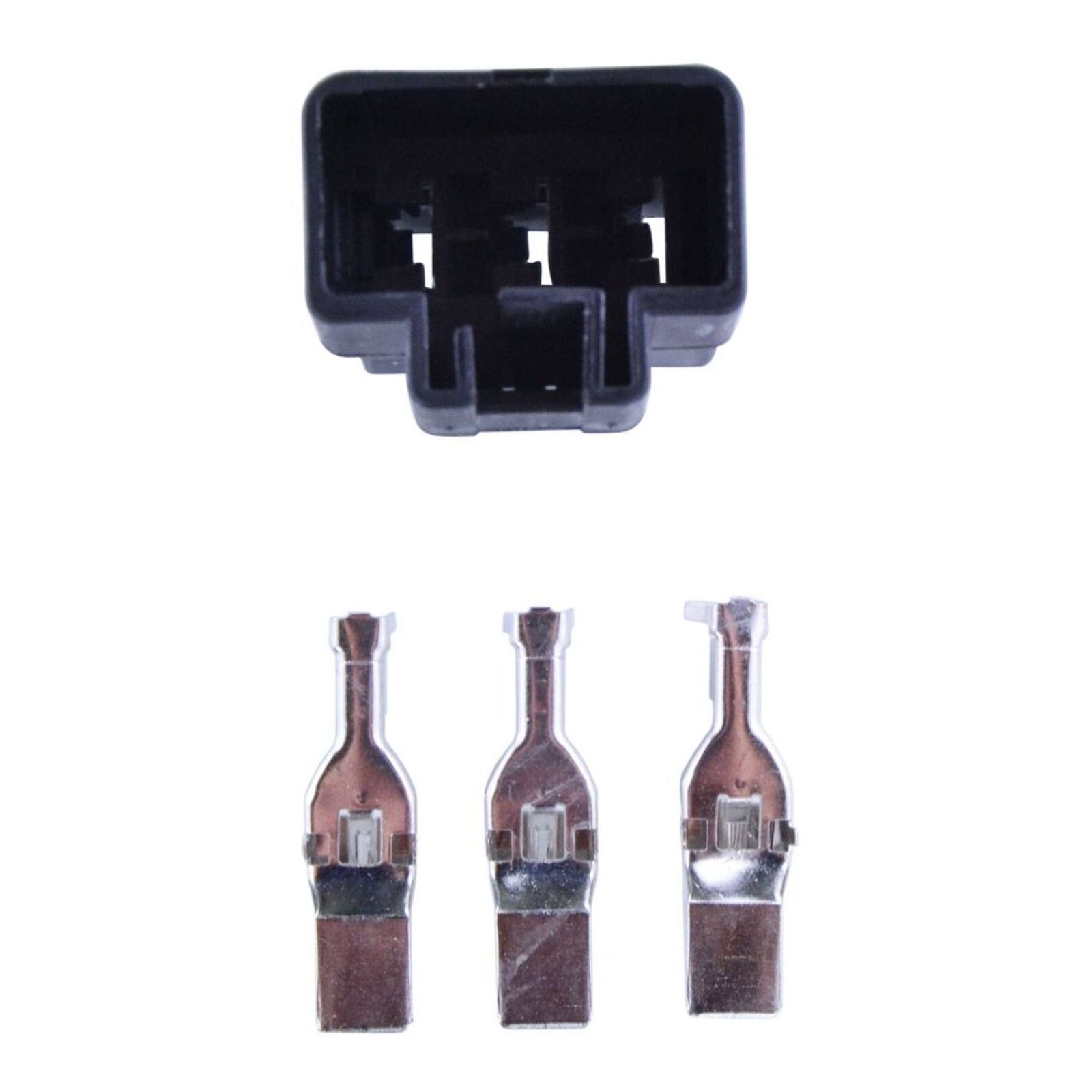

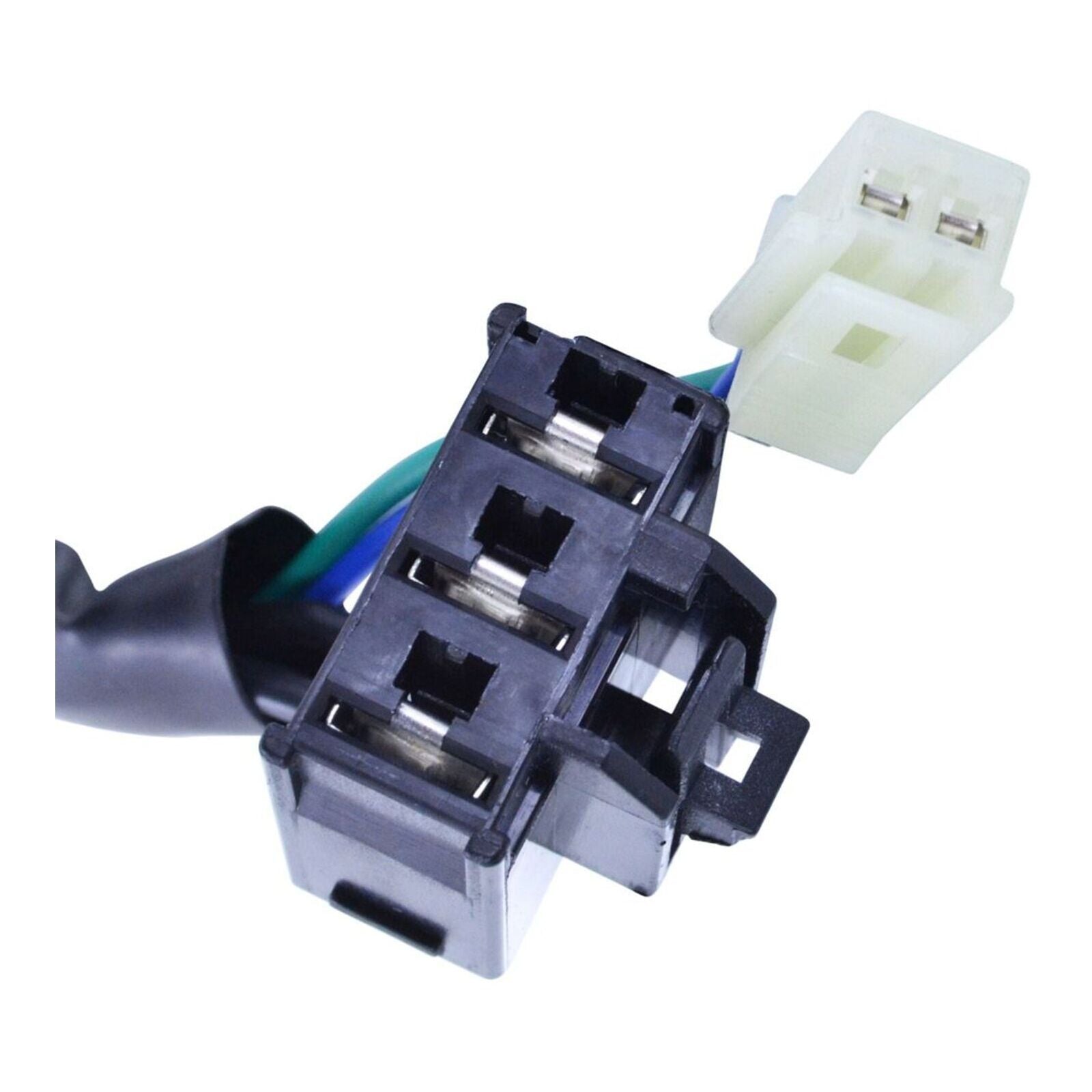

Connector included.

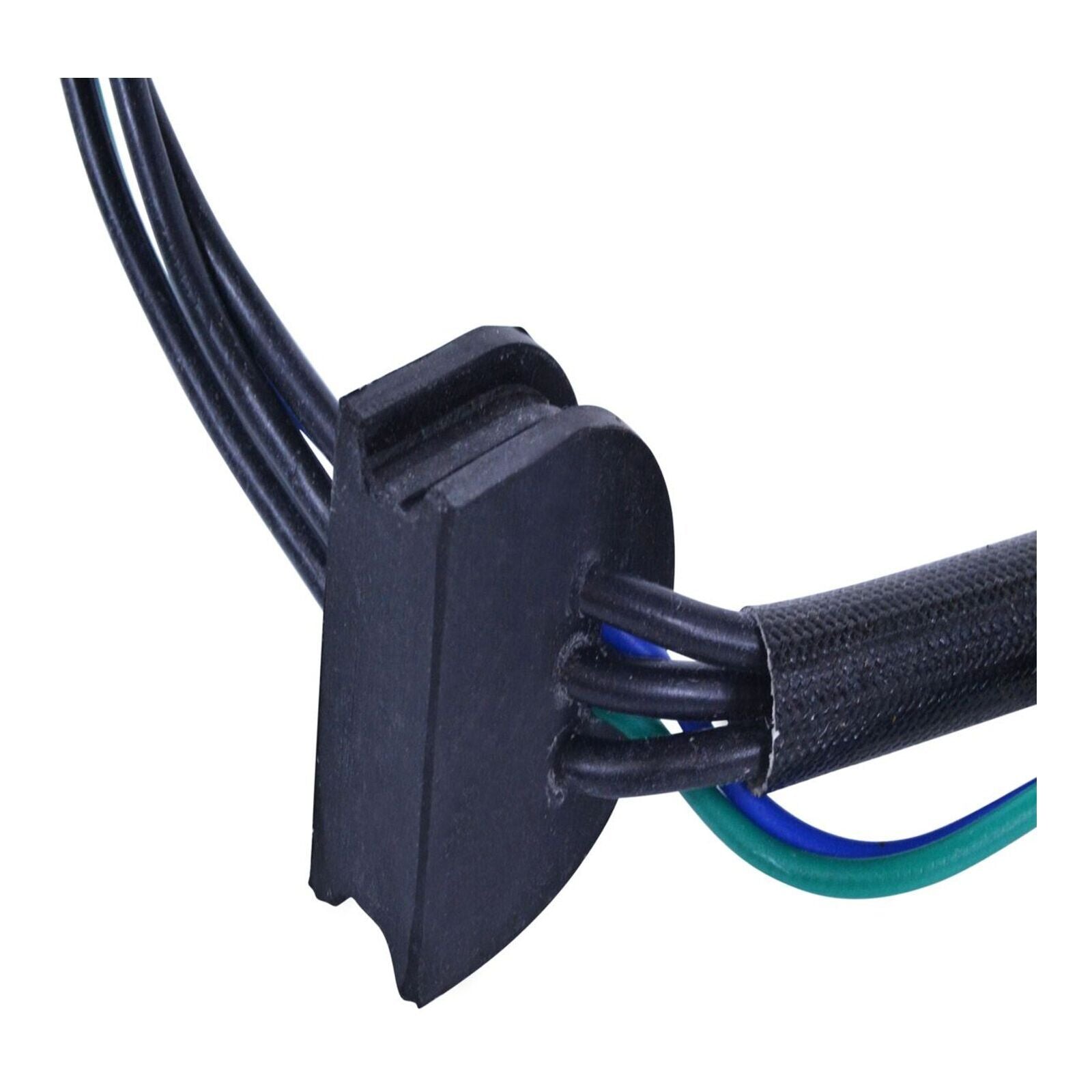

Rubber grommet included.
All products shipped are tested.

Dimensions:

Interio r diameter: 54 mm
Exterior diameter: 140 mm
Thickness: 18 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 420 mm
Length of pickup coil's wire to grommet: 240 mm

Other Specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to Wire Resistance:

Alternator: Black to Black = 0.5 ohms ±20%
Pickup: Blue to Green = 239 ohms ±20%
