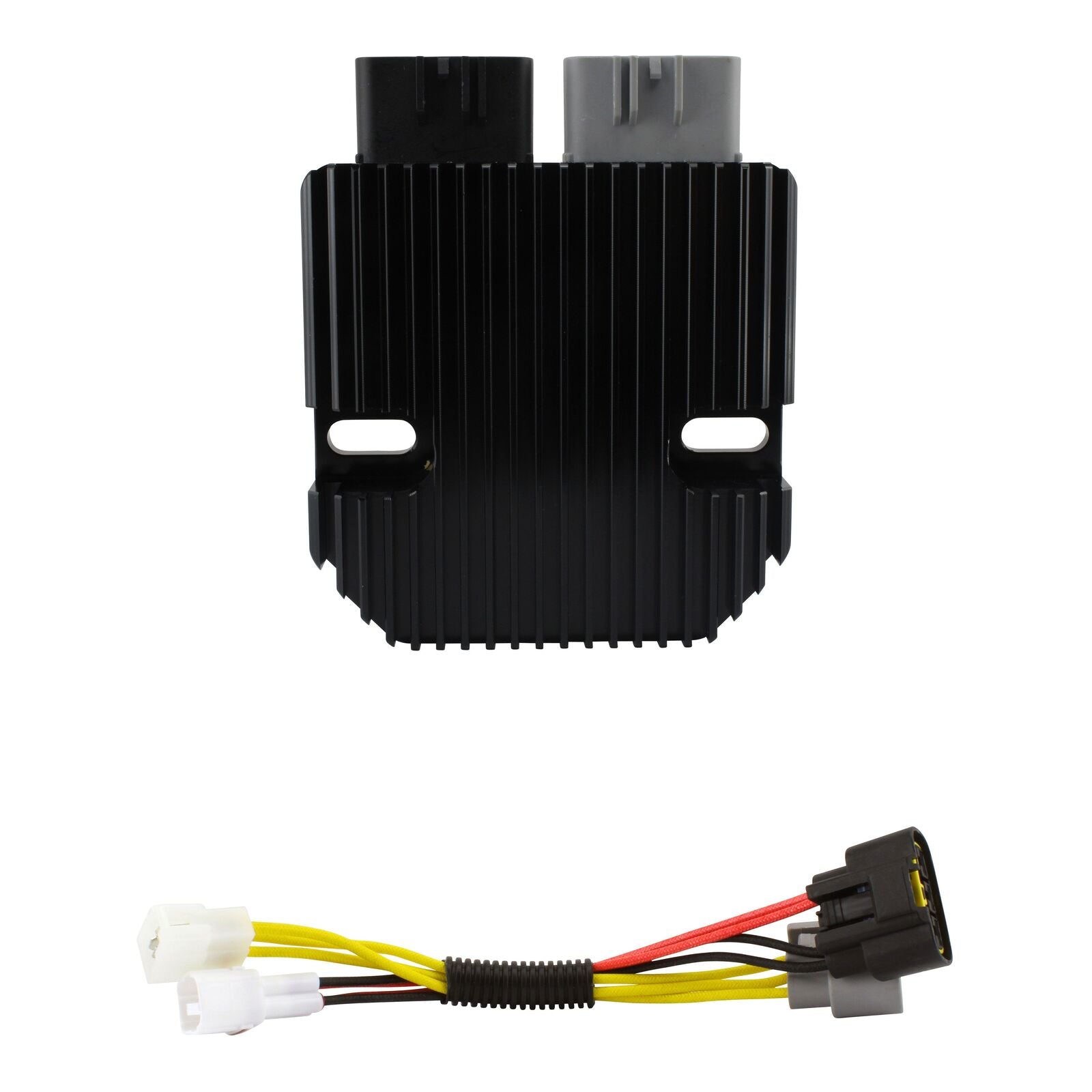

Revolt Regulator for Suzuki Assorted Models

Join the revolt against bland voltage regulator performance!

Refuse to compromise to current 30-year-old technology. With its redesigned rectifier technology, REVOLT excels where every other fails: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications.

Features:

• RUNS 50% COOLER THAN OEM
  Two years of R and D and careful choice of top-graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products.
• SOLVES THE MAJOR CAUSE OF FAILURE
  REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability.
• DISSIPATE HEAT 45% BETTER THAN OEM
  Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminium billet for optimal heat transfer from internal components to external fresh air.
• PROUDLY MADE IN NORTH AMERICA
  REVOLT is engineered, designed, and manufactured in North America under strict quality control standards.
• LIFETIME WARRANTY
  REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator again.

Dimensions:

• Width: 103 mm
• Length: 102 mm
• Height: 26 mm
• Fixation Holes Center to Center: 78 mm

Electrical Specifications:

• Number of Plugs: 2
• Number of Pins: 5
• Number of Wires: 0
• Minimum Charging Voltage: 14.5 V ± 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: < 15 V
• Operation Temperature: -20°C to 85°C

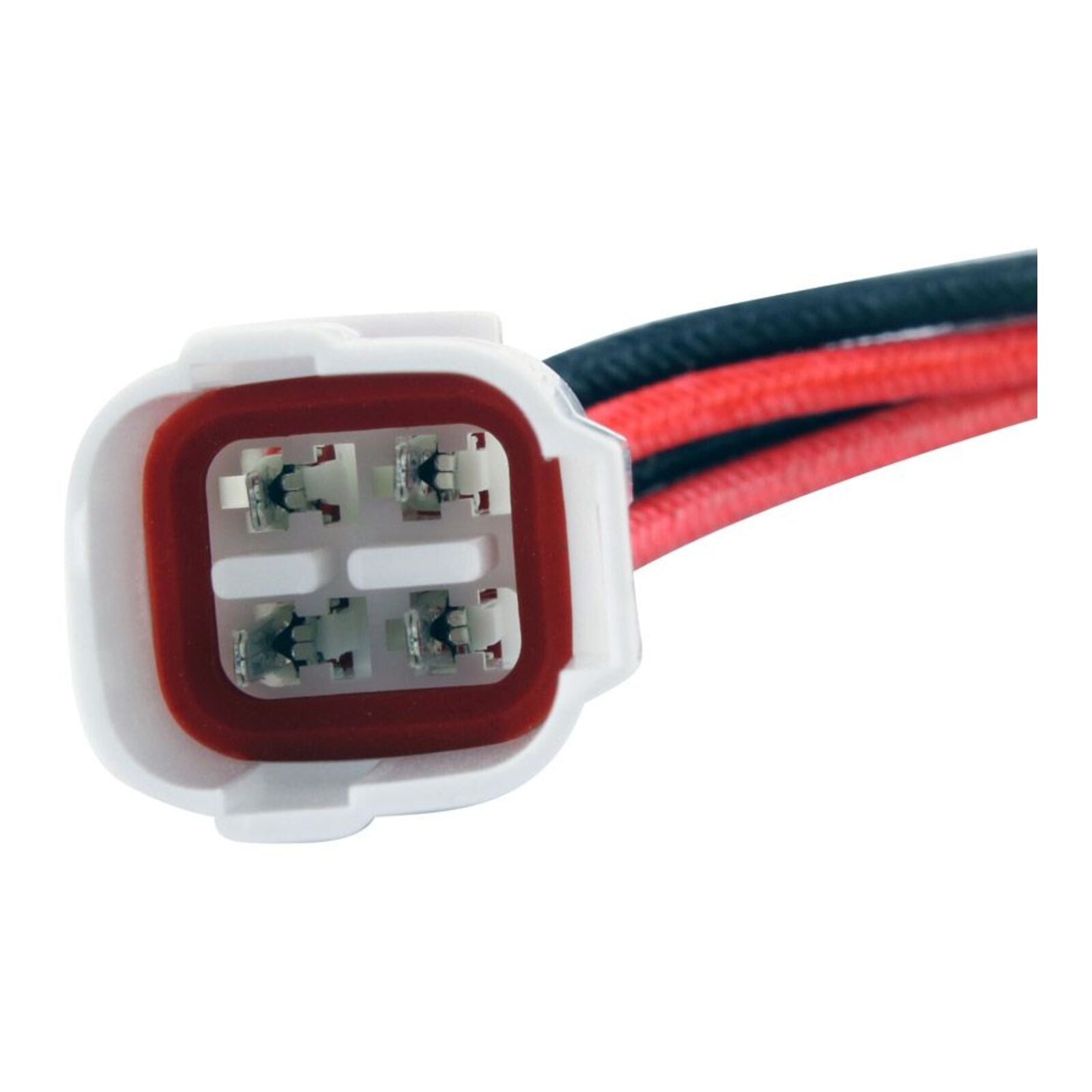

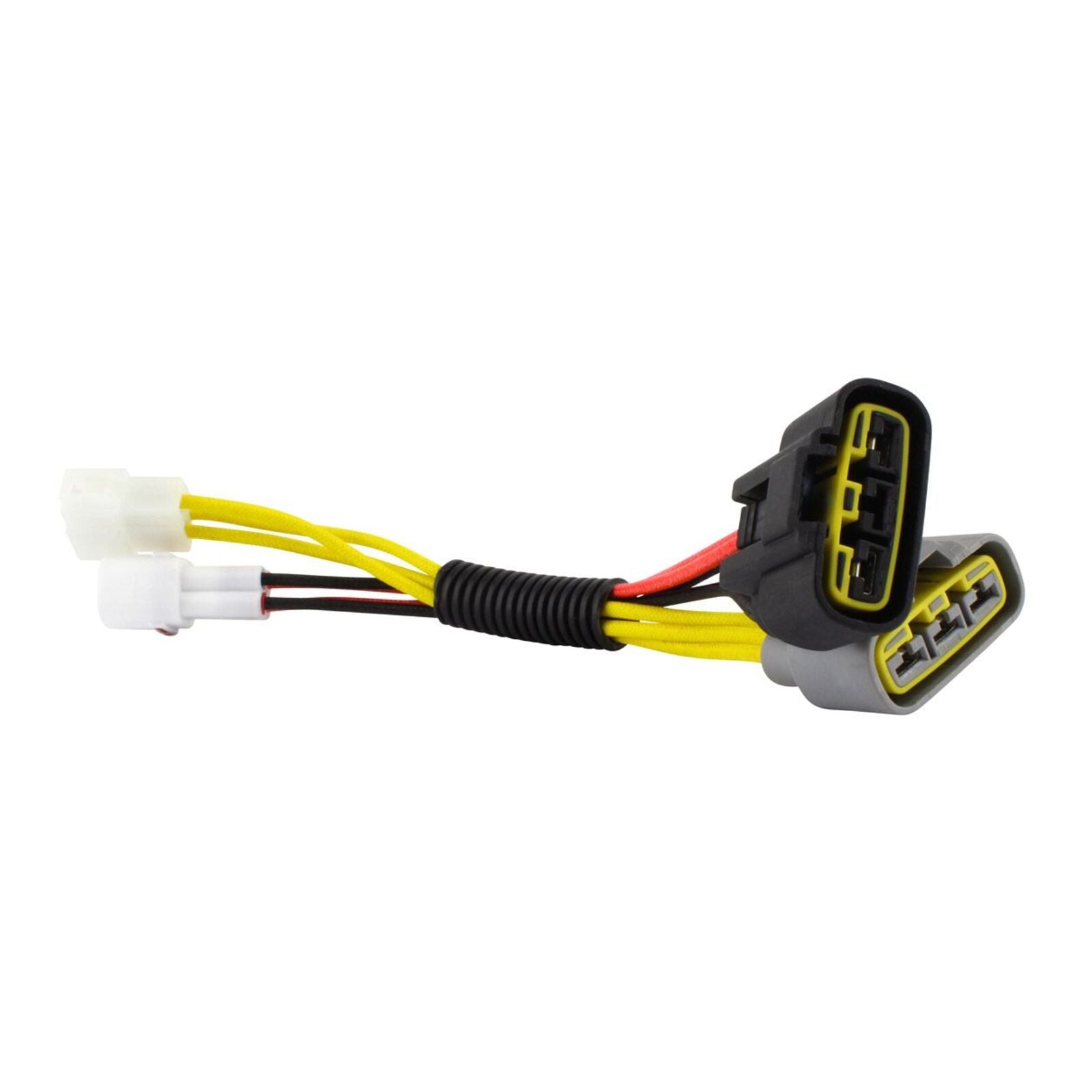

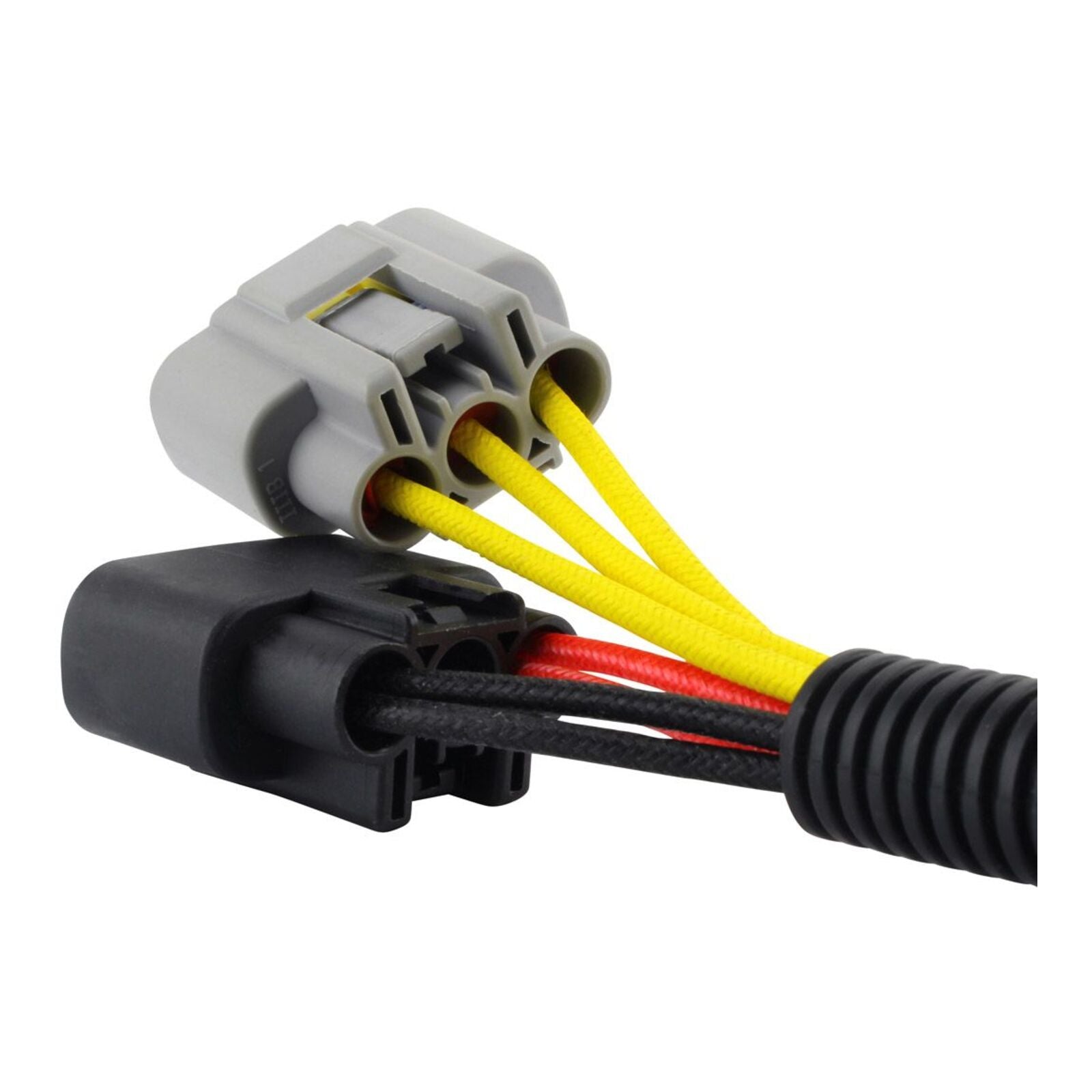

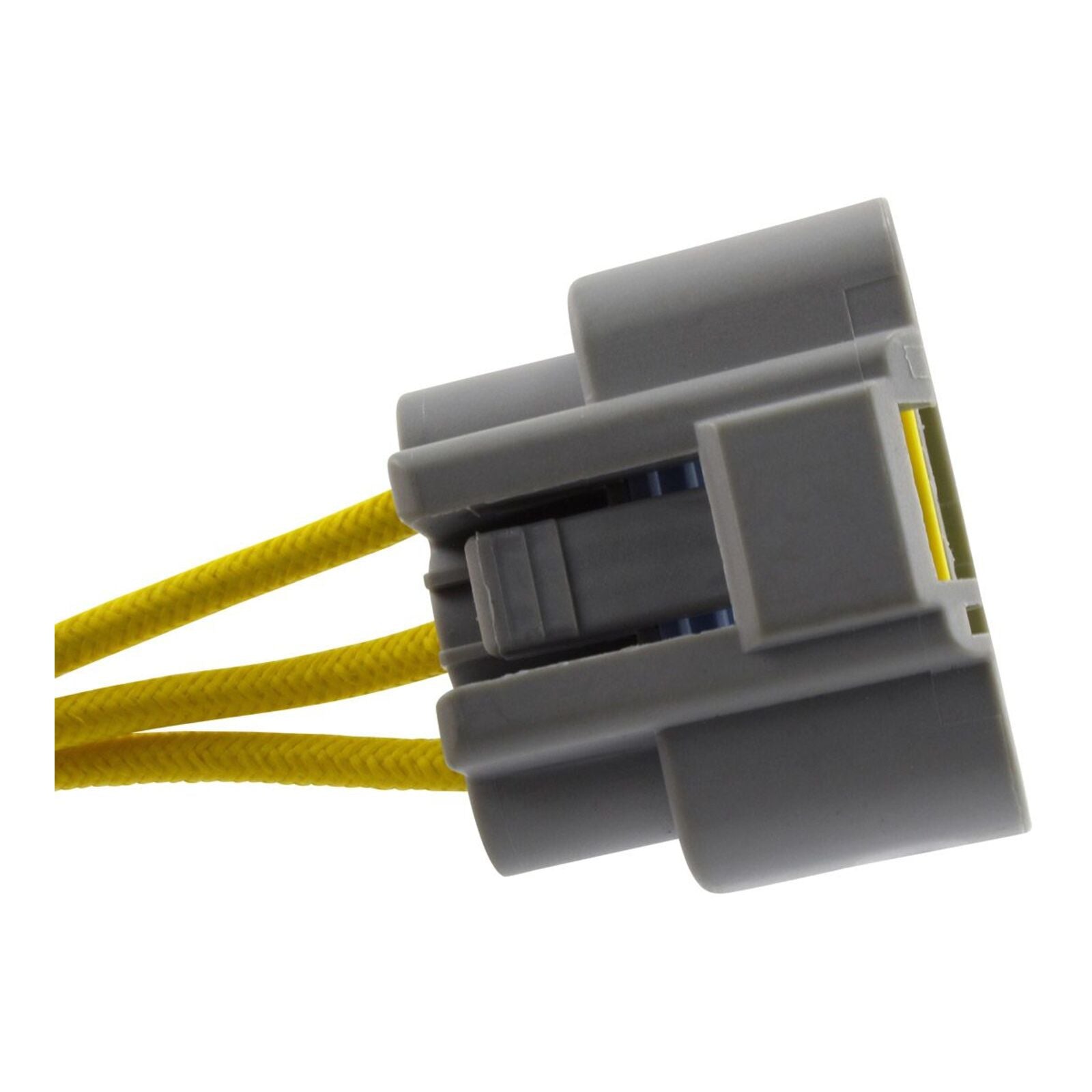

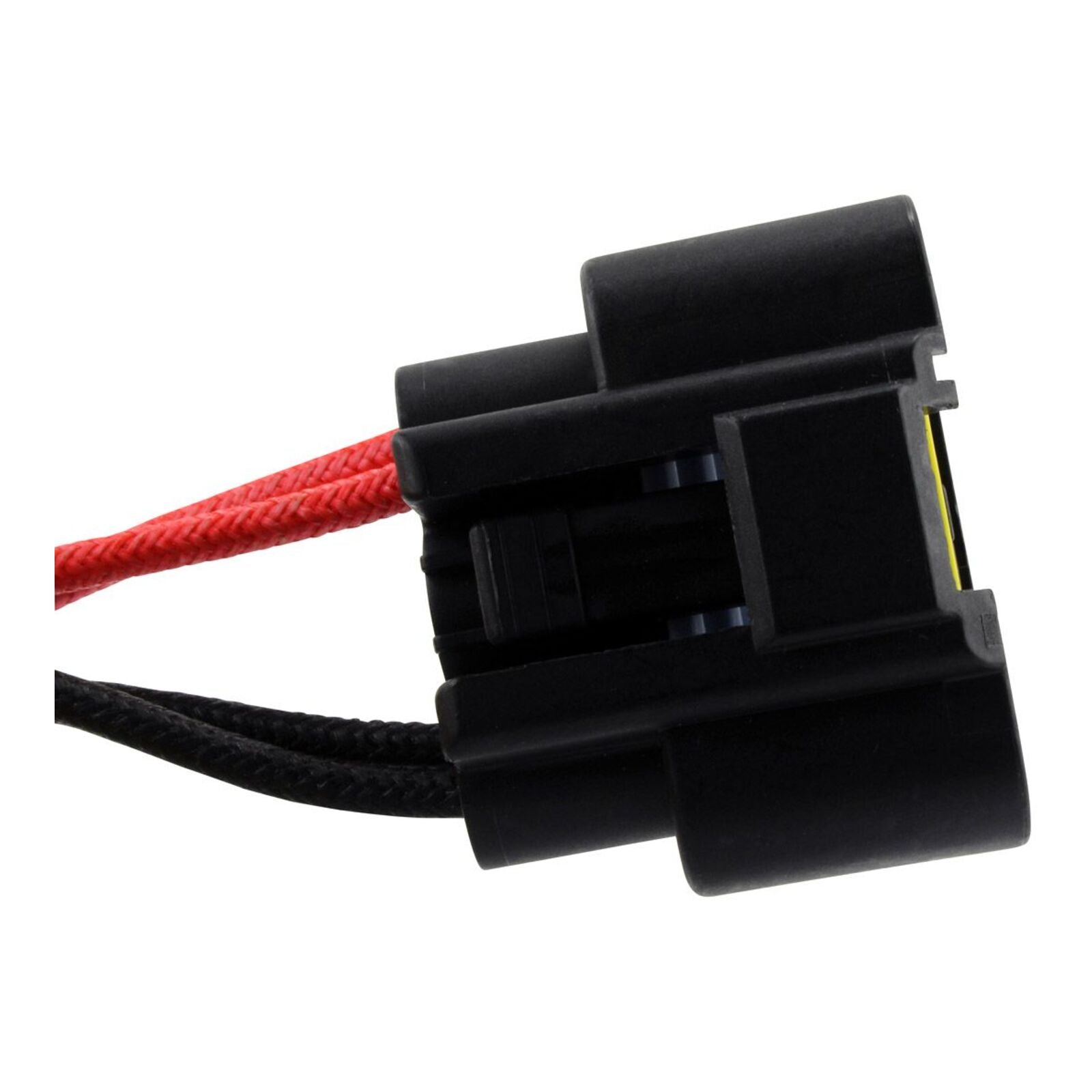

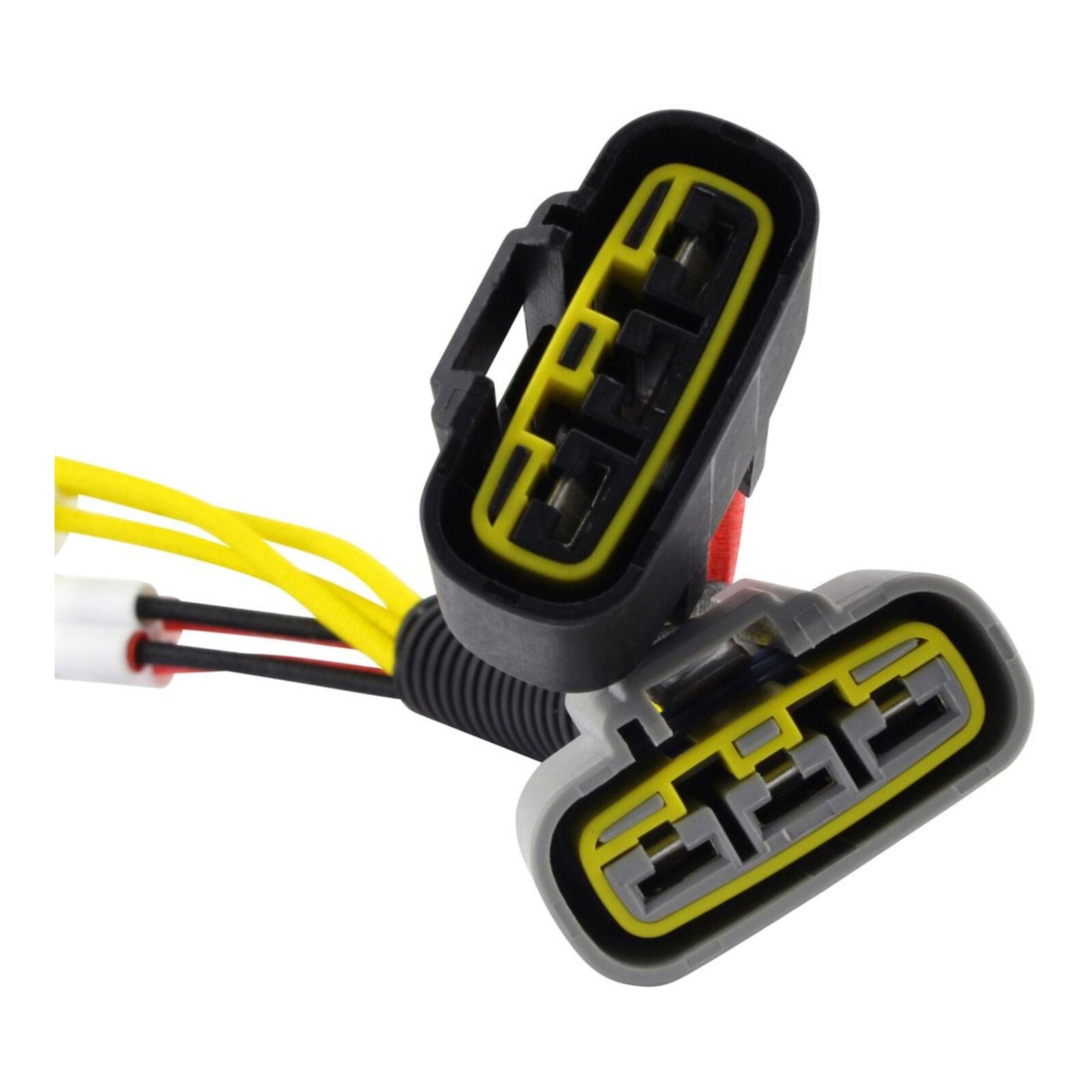

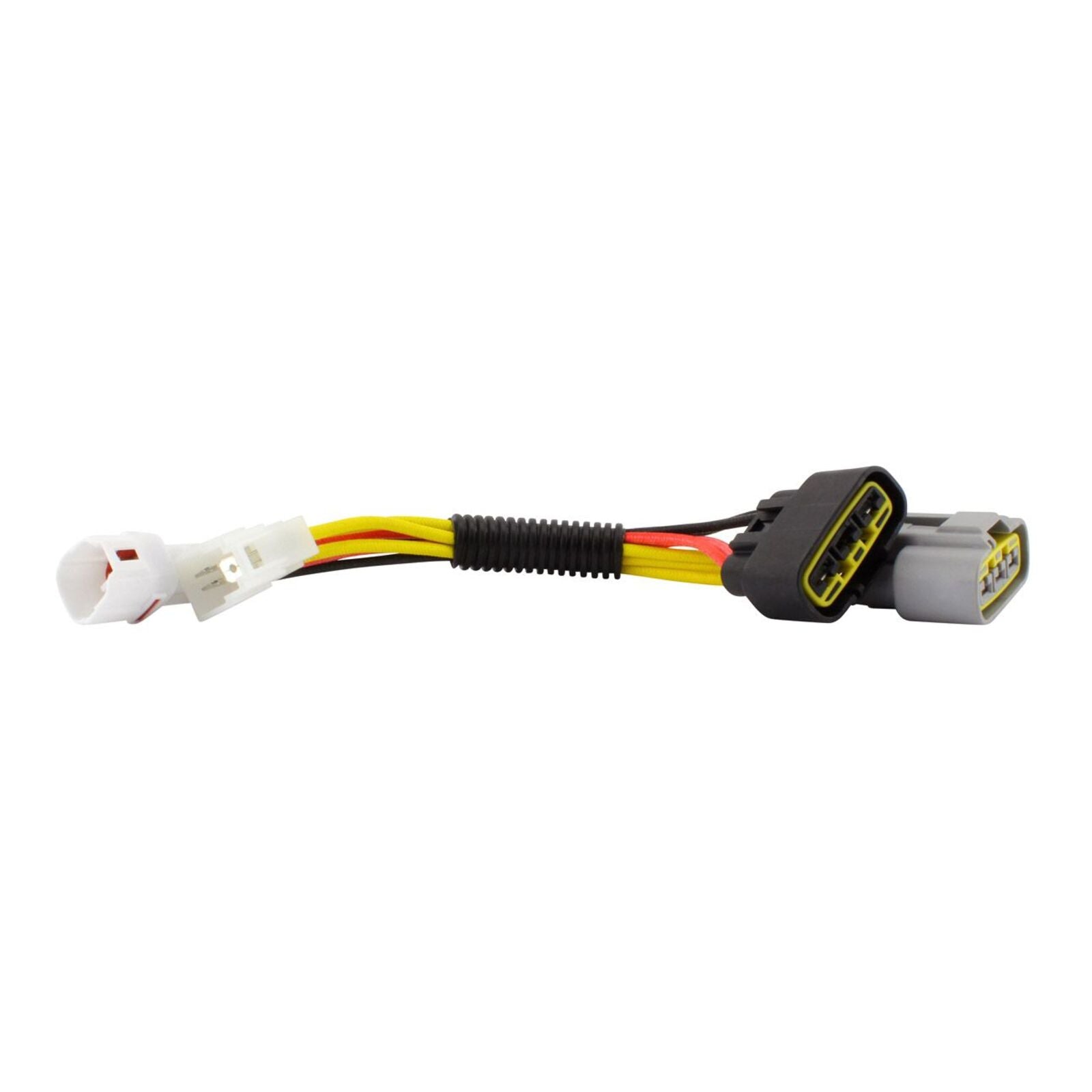

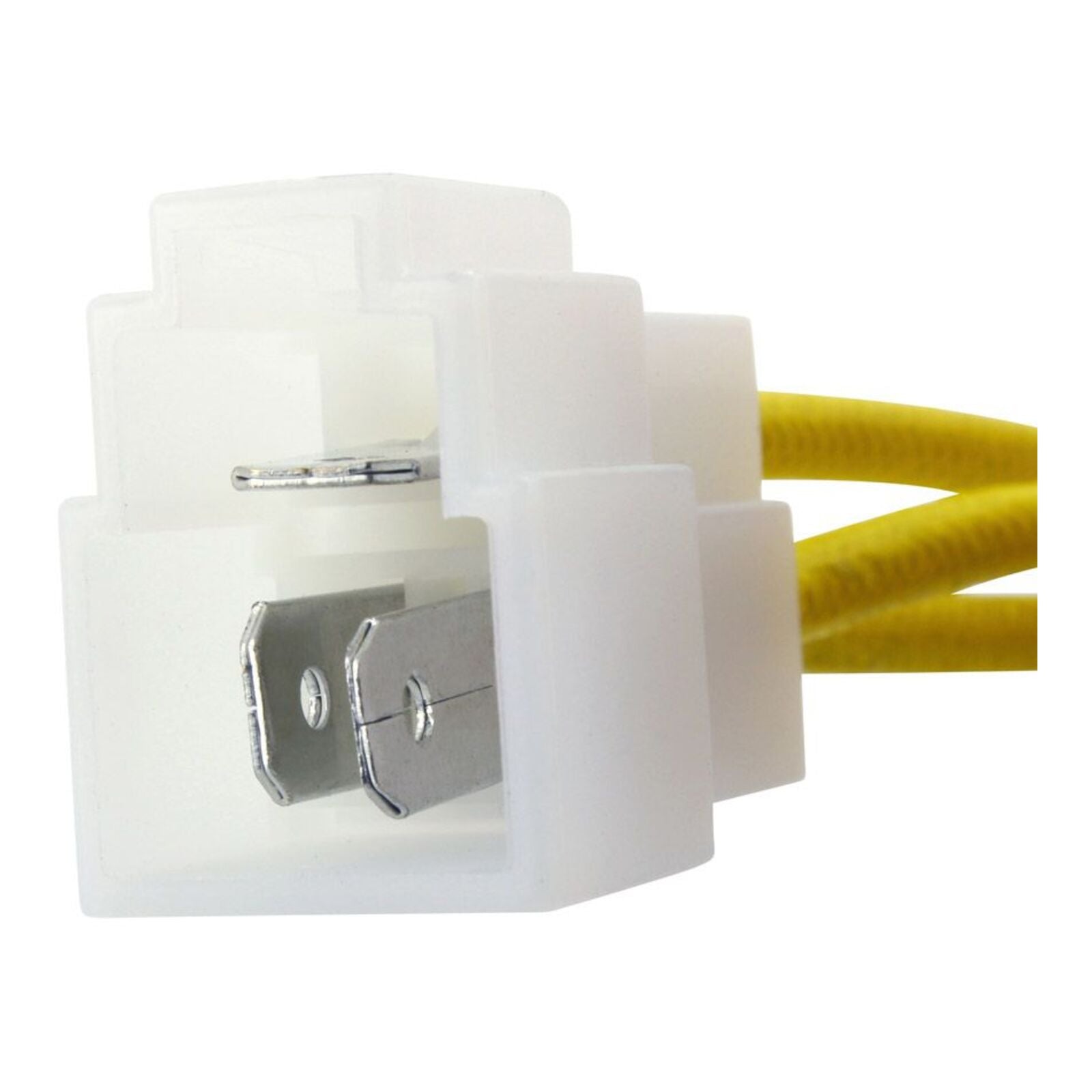

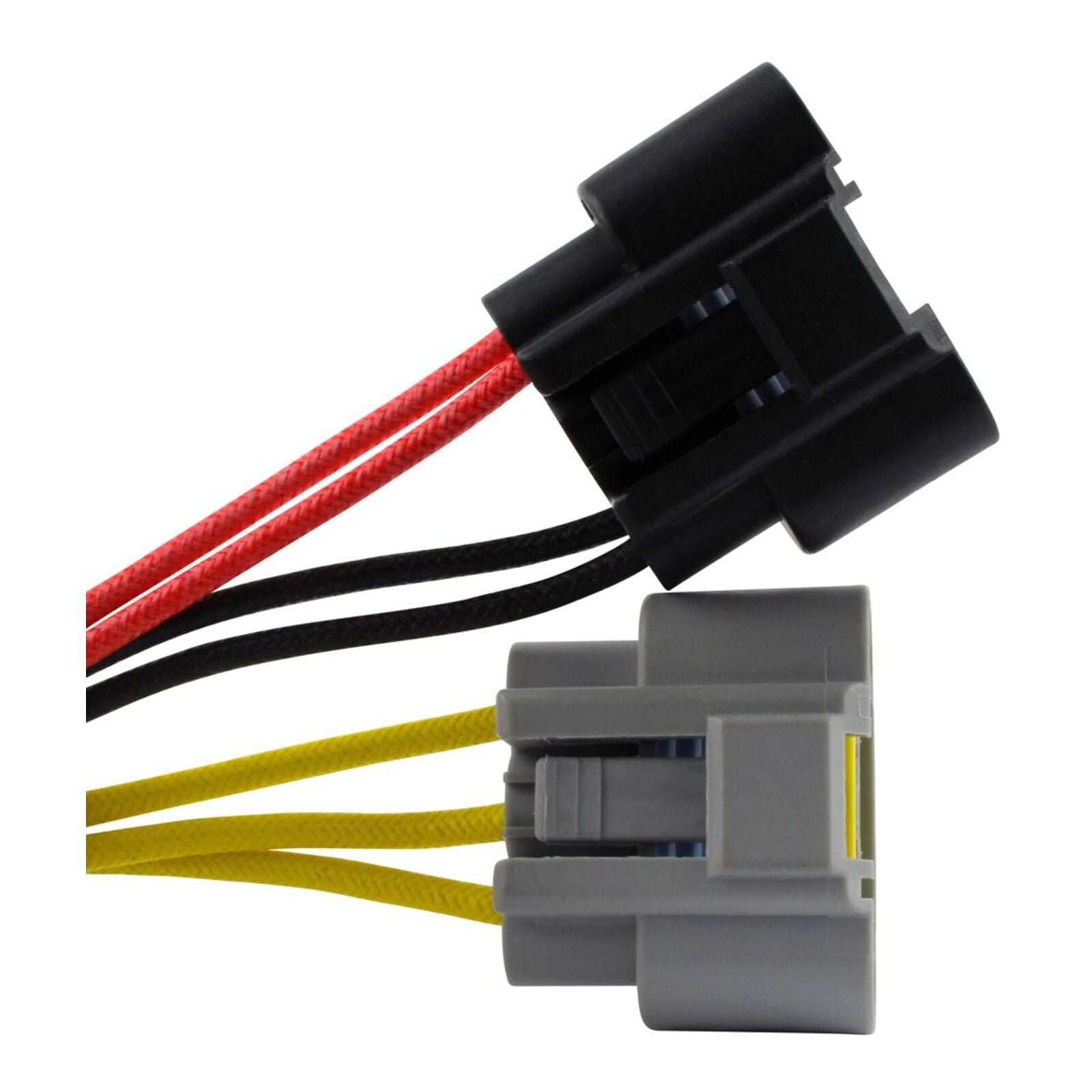

Harness:

• Wire Length: 150 mm
• Number of Yellow Wires: 3
• Number of Red Wires: 1
• Number of Green Wires: 1
• Number of Plugs: 3
