STATOR KIT + CDI BOX + IGN COIL HON XR 600 R '88-00'

STATOR KIT + CDI BOX + IGN COIL HON XR 600 R '88-00'

Low stock! Only 5 left
$479.99
$479.99
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Want next day delivery? Be quick!

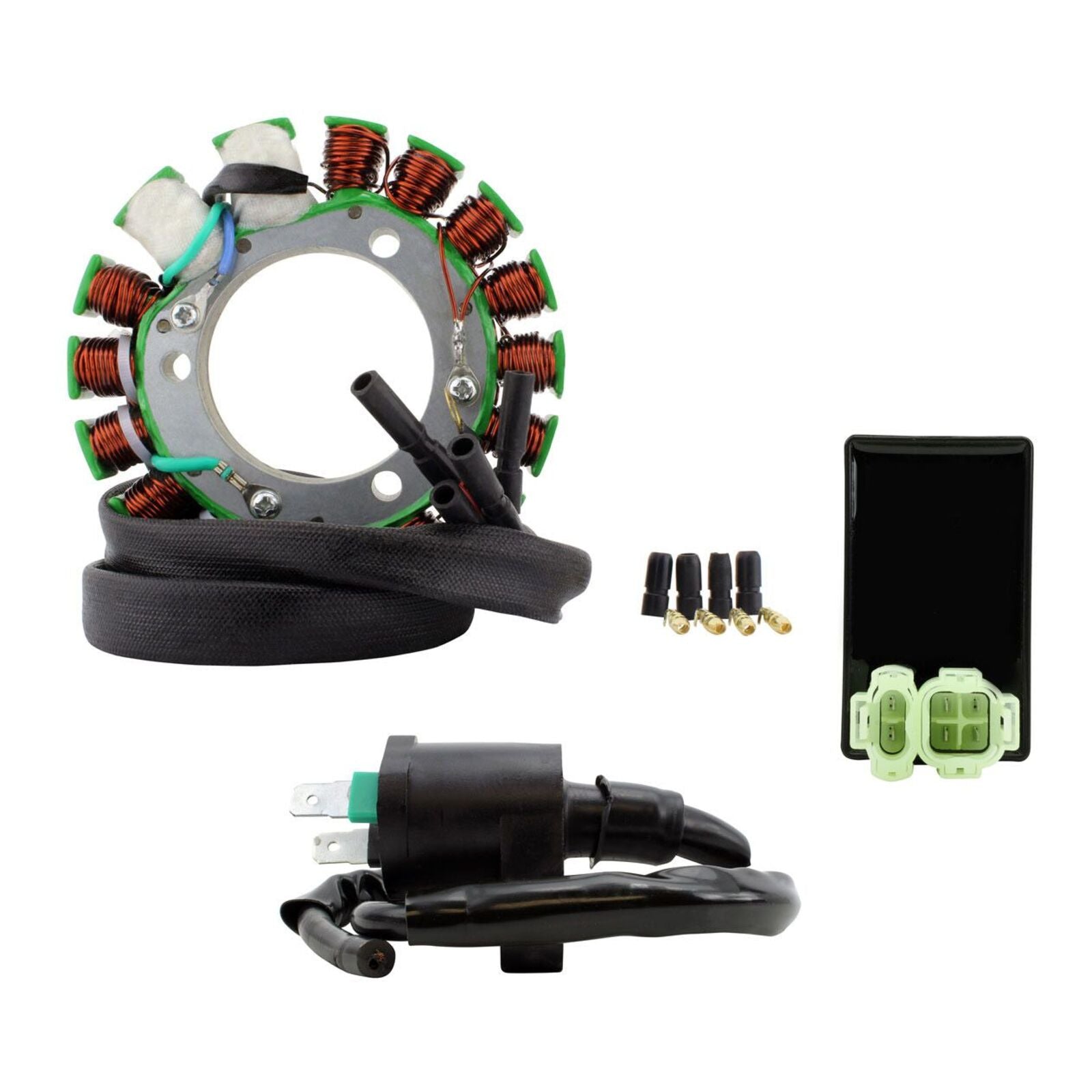

Brand new Kit High Output Stator 200W + High-Performance CDI + External Ignition Coil

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Brand new aftermarket High output Stator 200W

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • 2 x 100W
  • Connectors included
  • Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

Brand new aftermarket CDI box

  • Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
  • Higher grade of electronic components.
  • The quality exceeds the OEM equipment

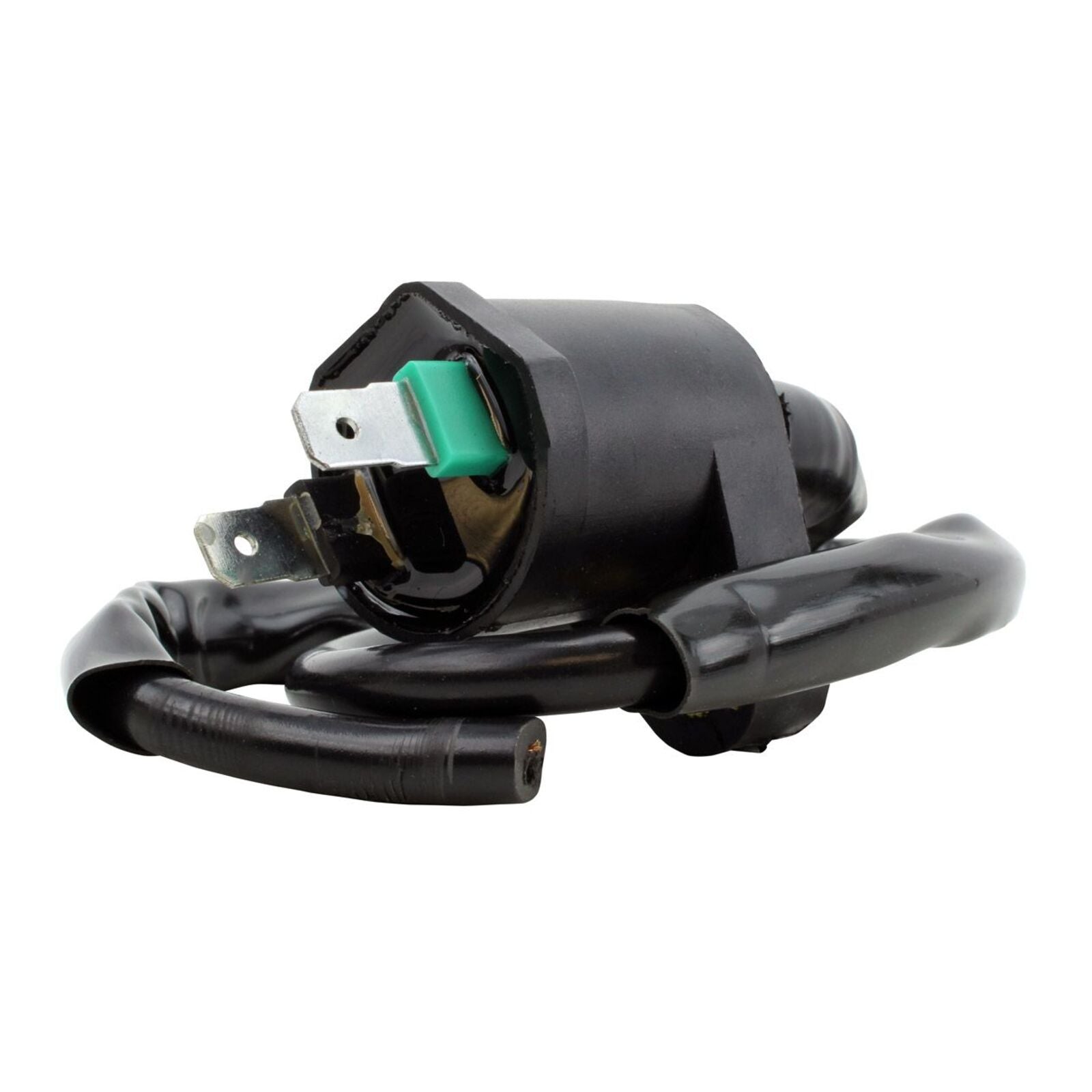

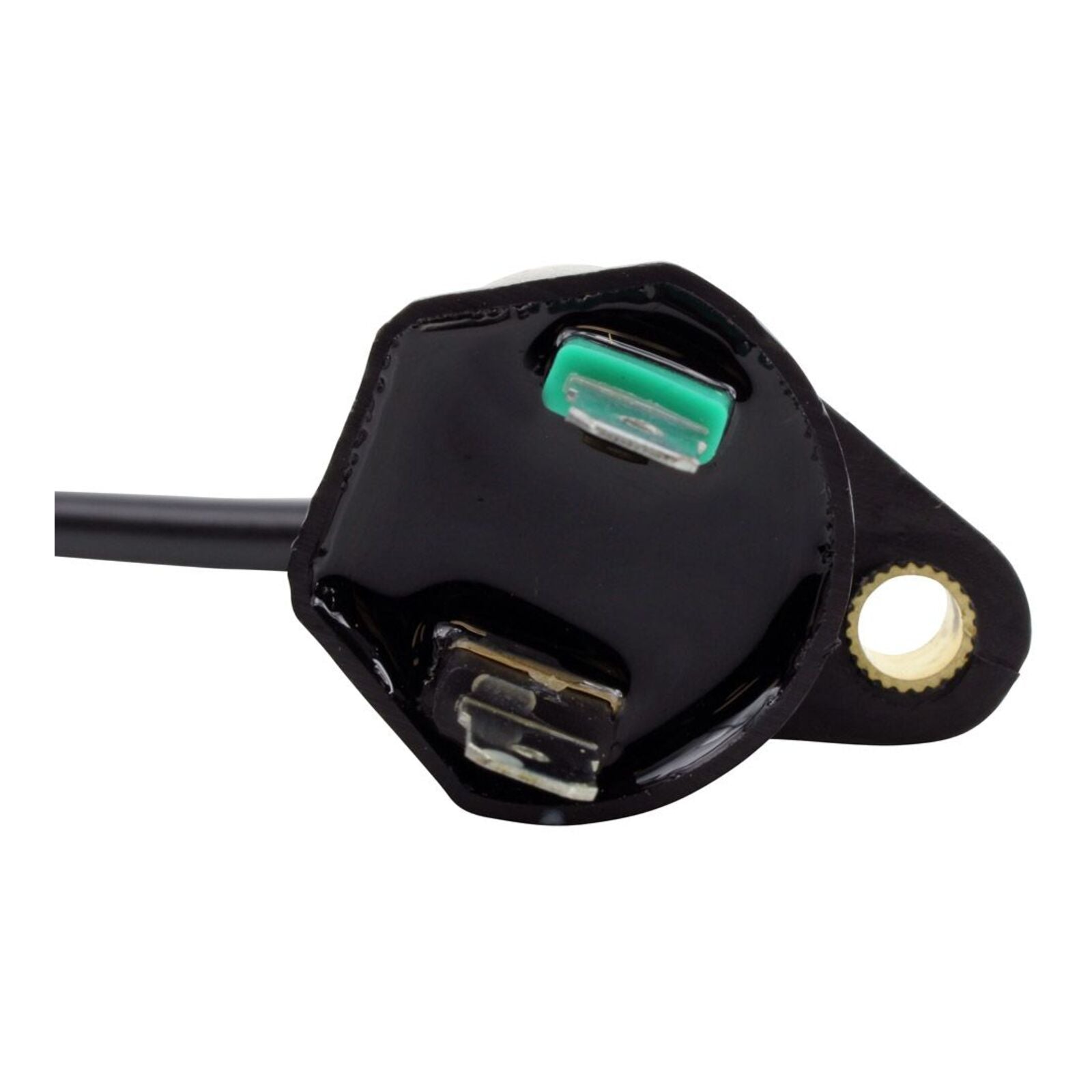

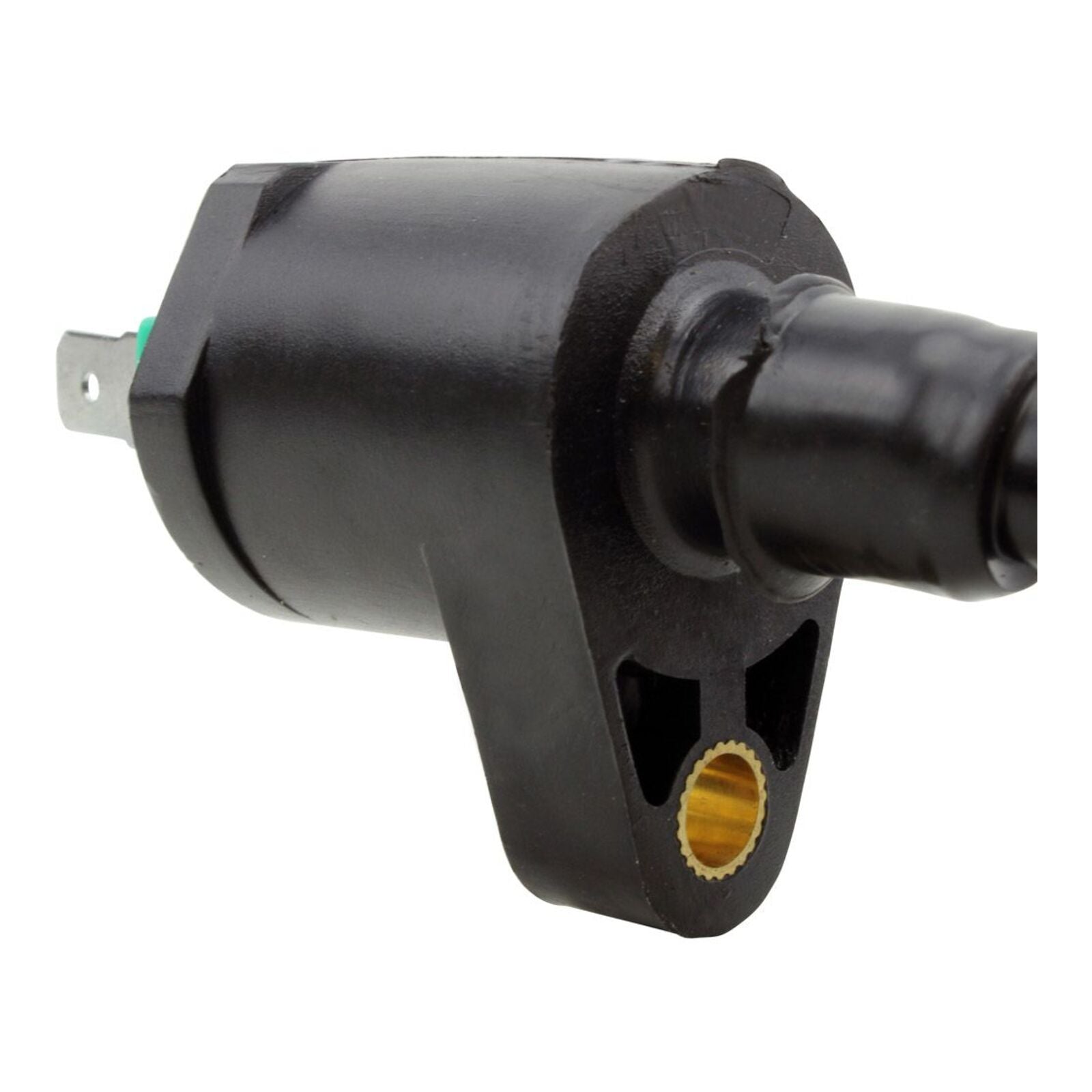

Brand new aftermarket External Ignition Coil

  • You must re-install your OEM spark plug cap(s)
  • Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug- and-play unit, direct fit, and easy to install.

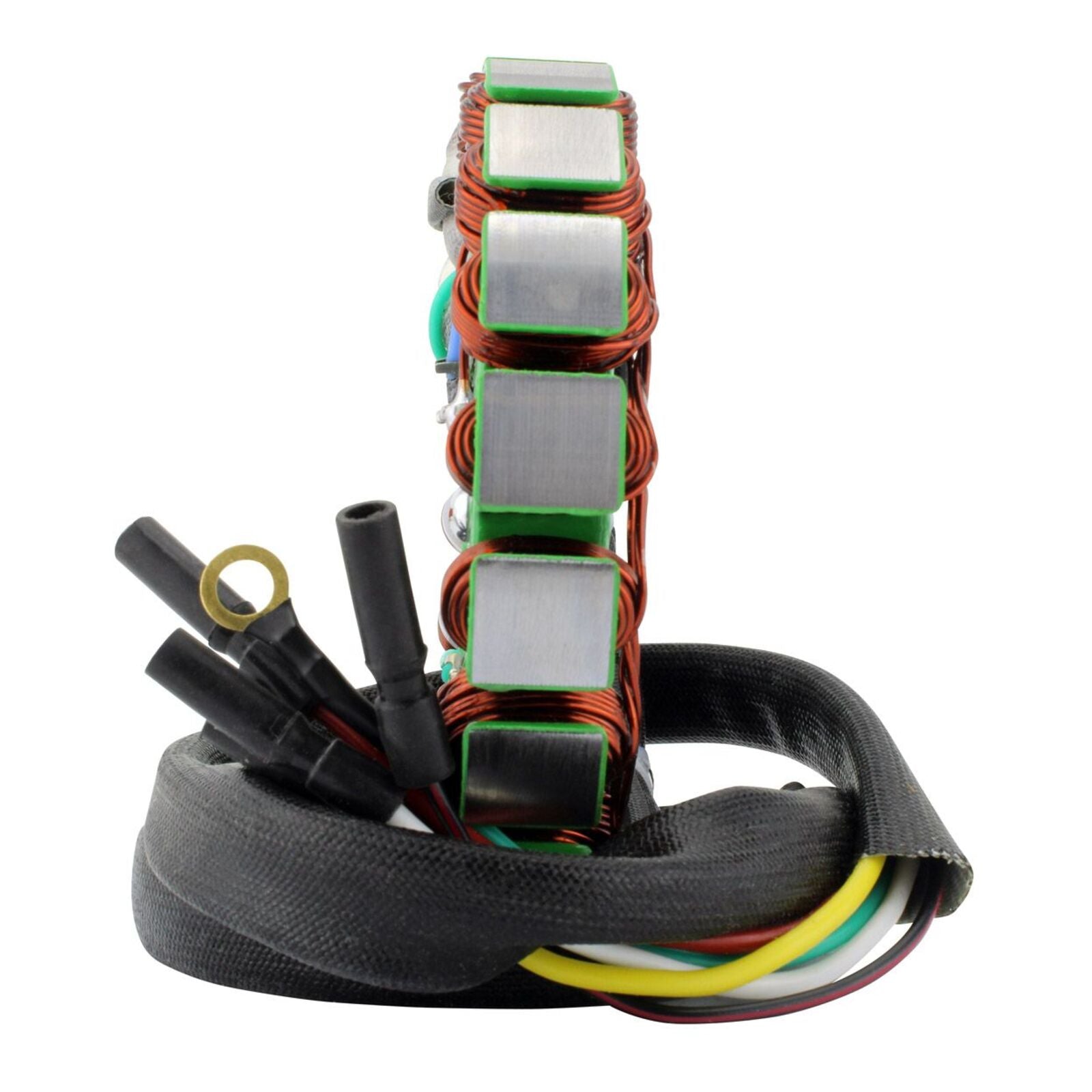

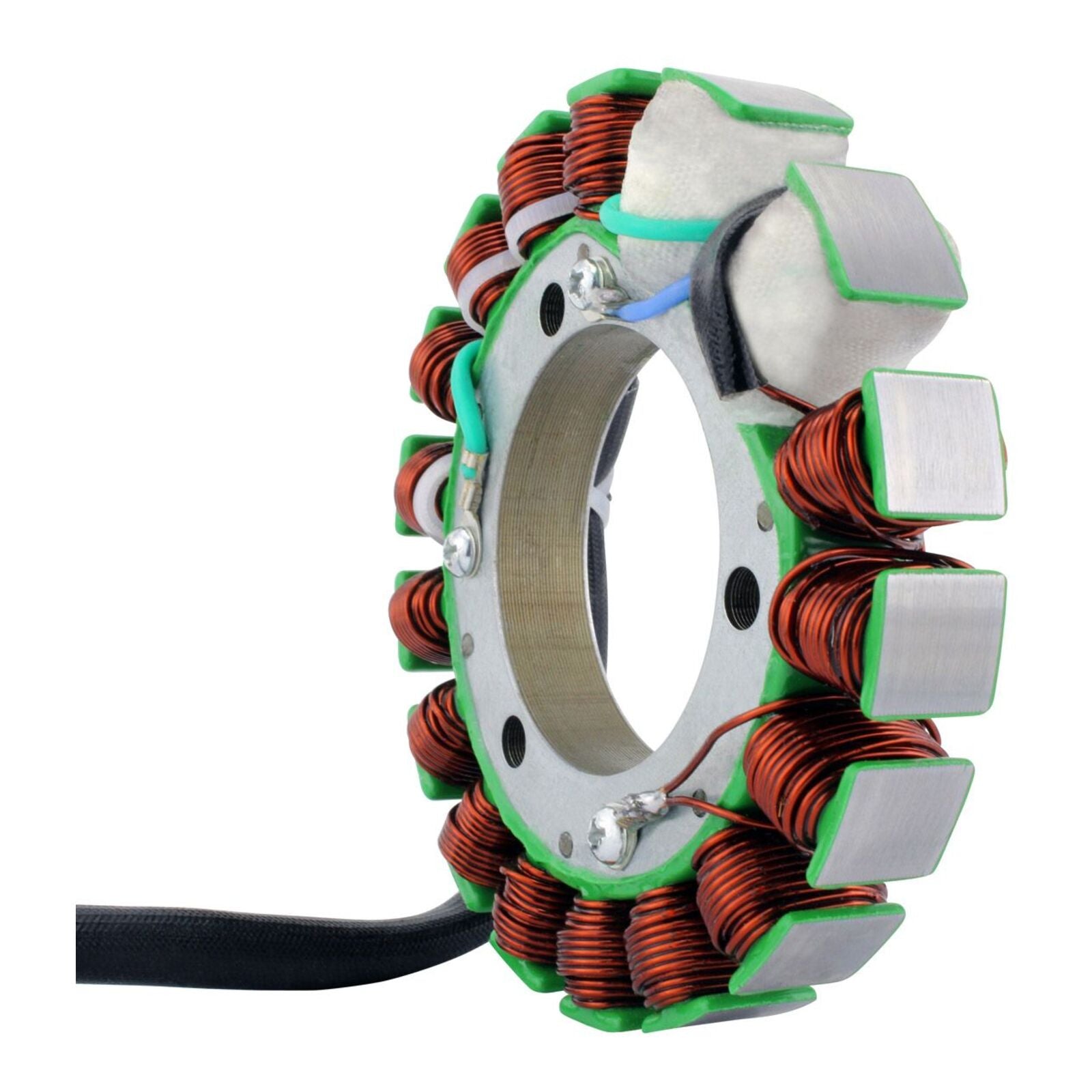

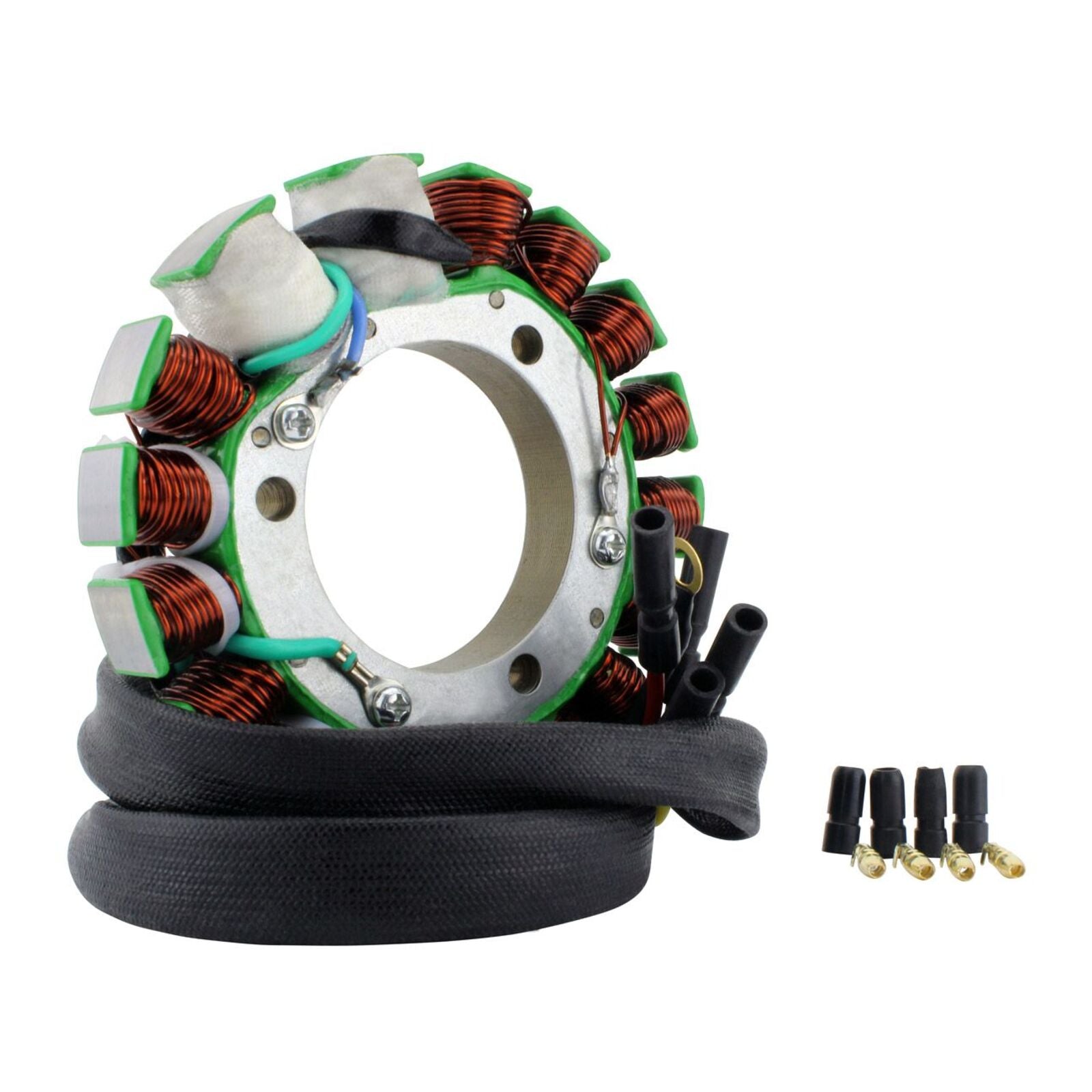

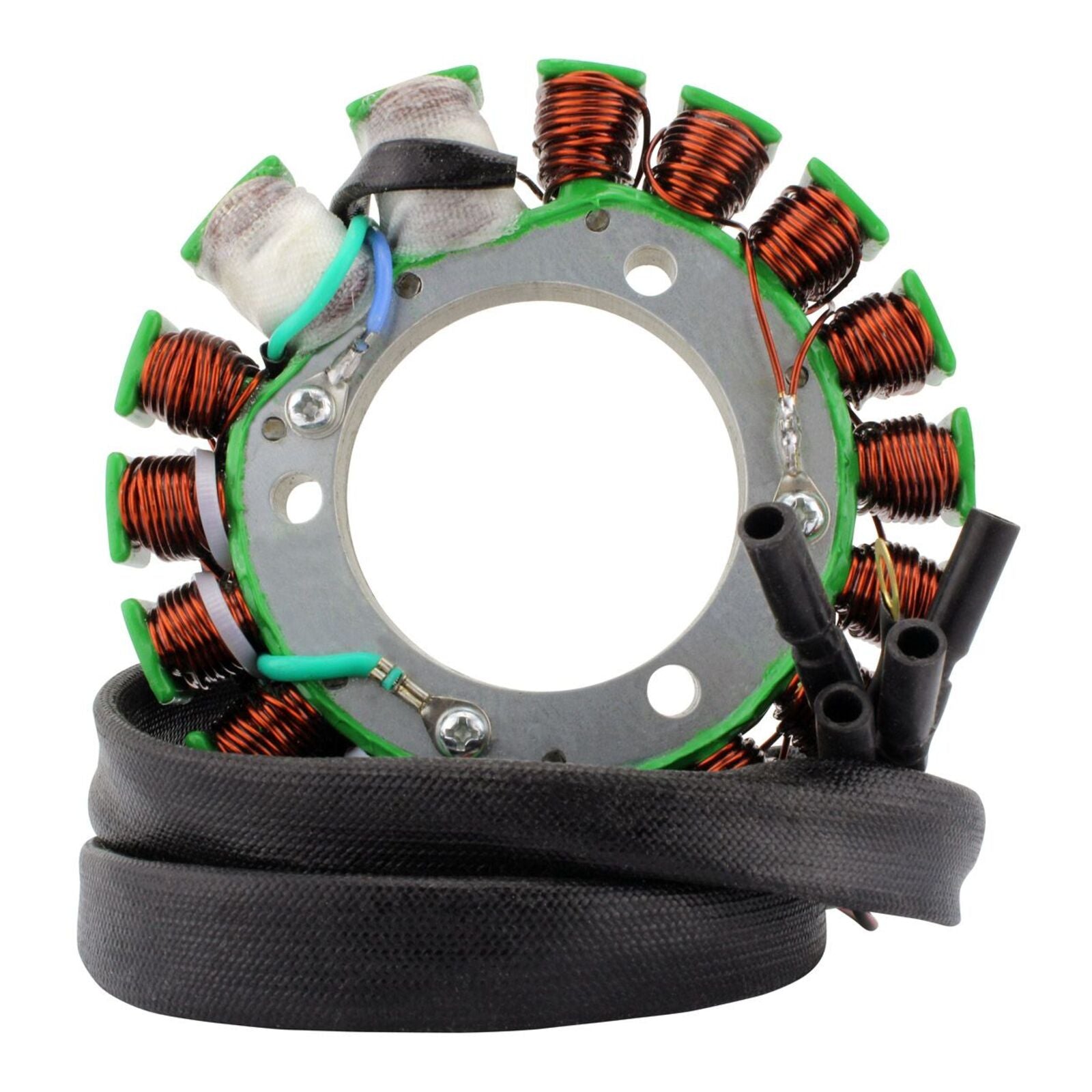

High output Stator 200W

  • Dimensions:
    • Interior diameter: 54 mm
    • Exterior diameter: 115 mm
    • Thickness: 15 mm
    • Length of wires stator to grommet: 200 mm
  • Length of wires grommet to plug: 700 mm
  • Other specifications:
    • Number of wires: 5
    • Number of plugs: 5
    • Number of pins: 3
    • Number of poles: 17
    • Wire to wire resistance:
    • Alternator: White to Green = 0.4 ohms +-20%
    • Alternator: Yellow to Red = 0.4 ohms +-20%
    • Source: Black/Red to Green = 140 ohms +-20%

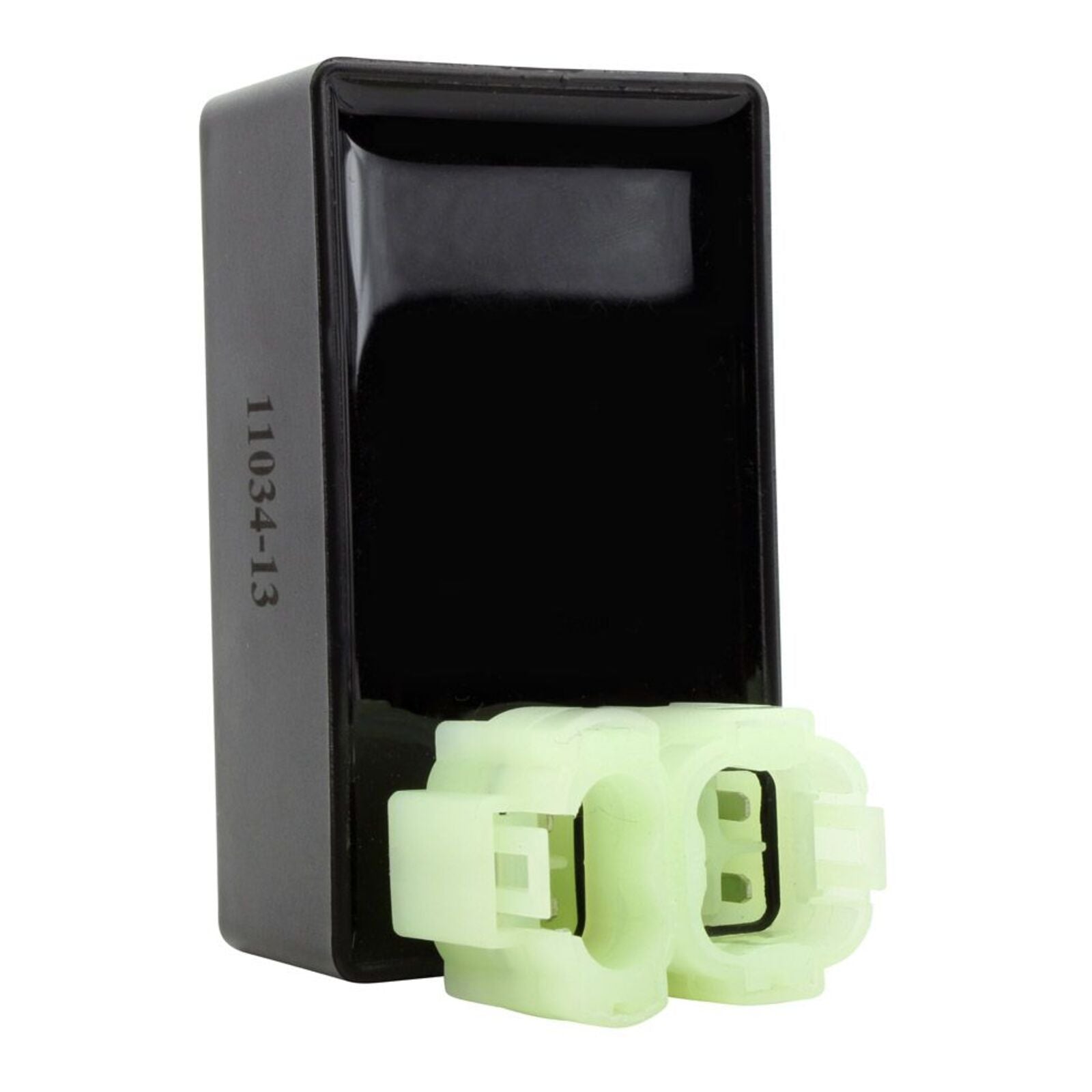

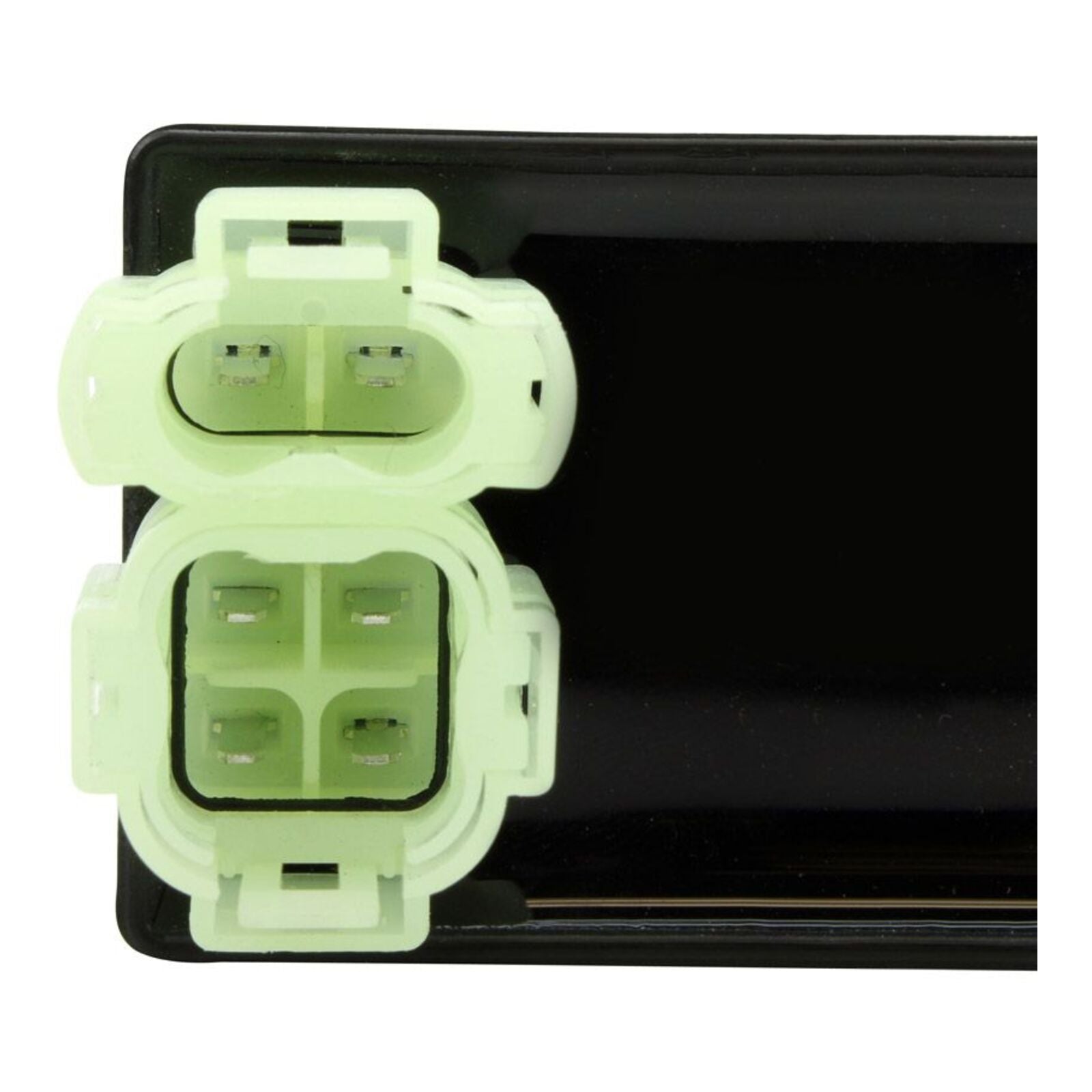

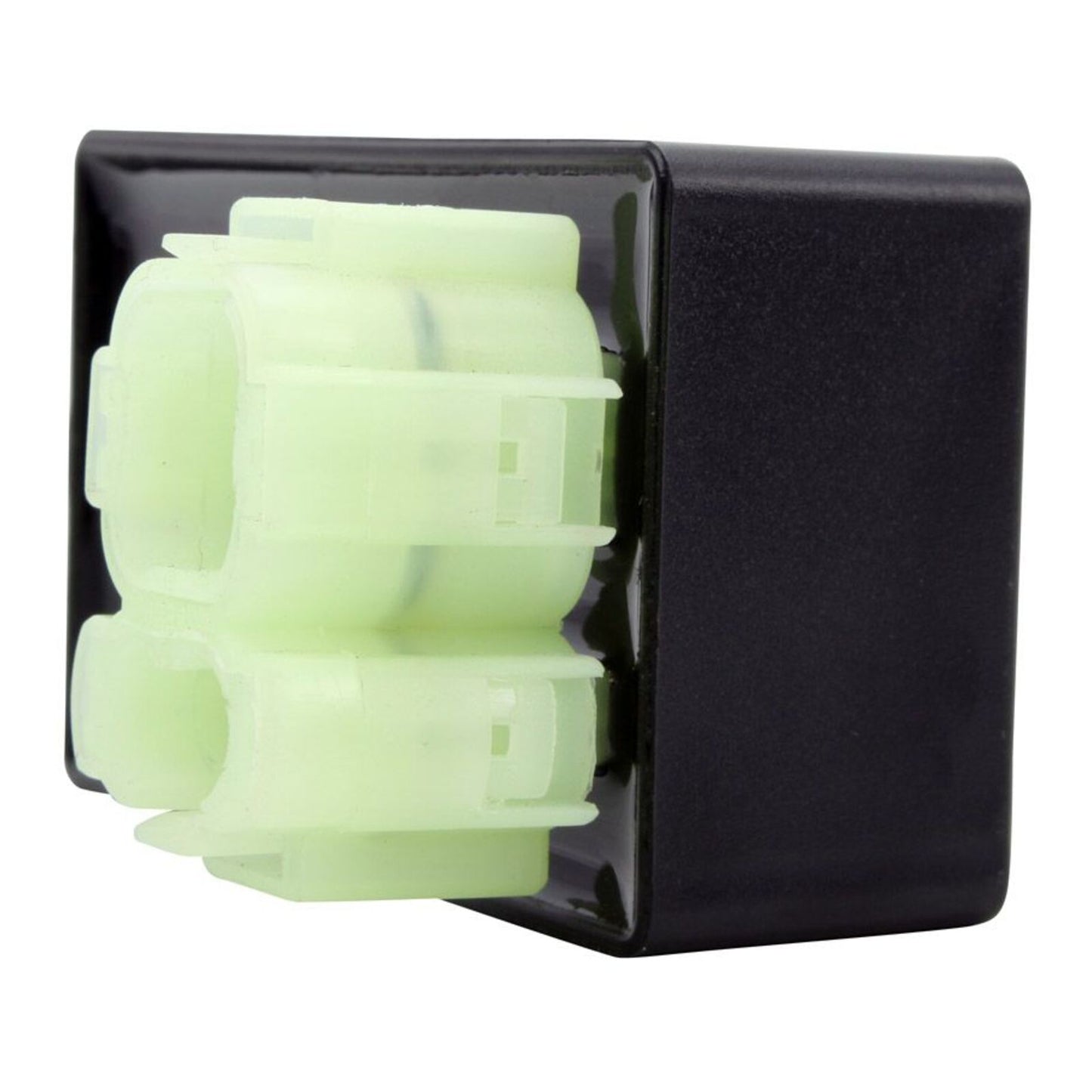

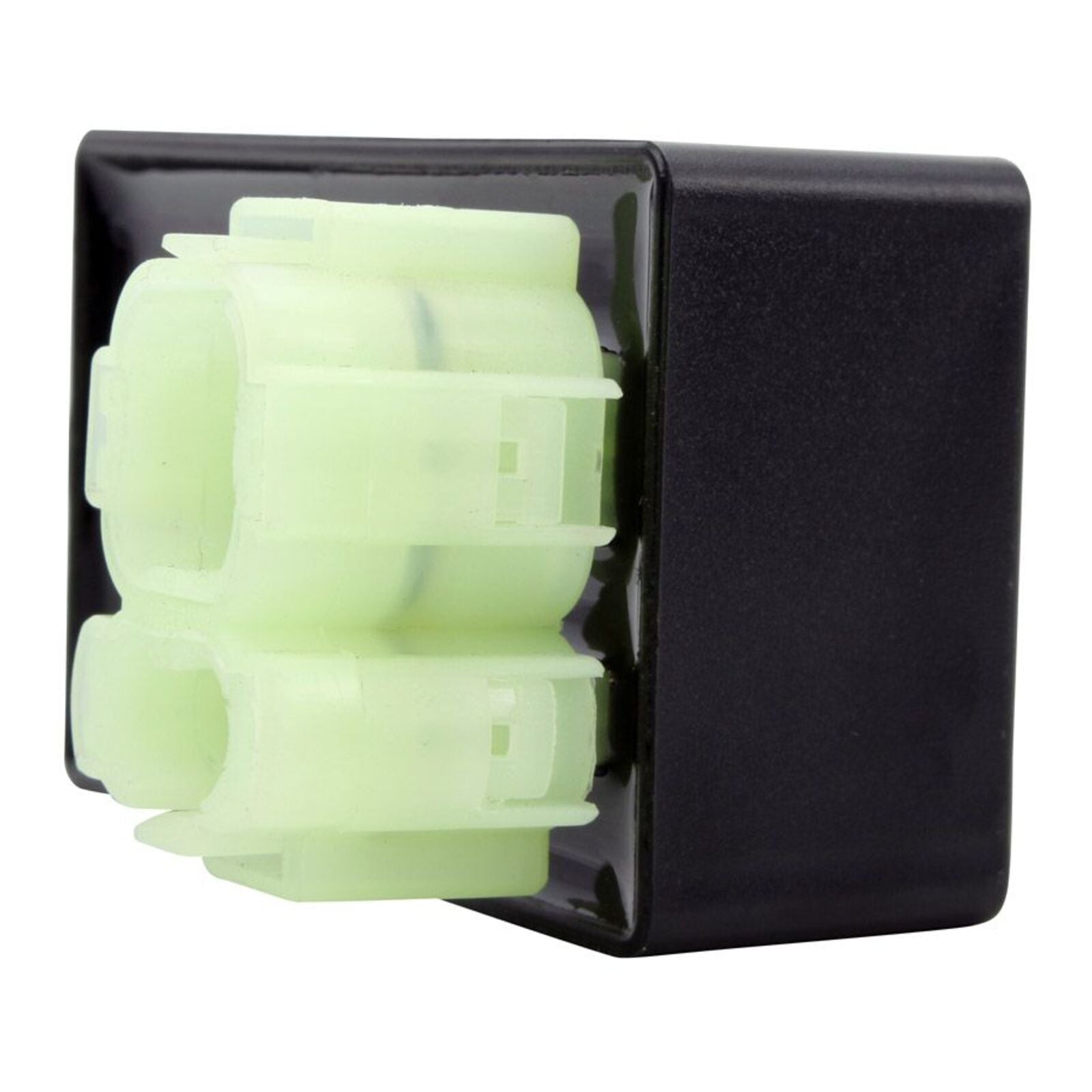

High- performance CDI Box

  • Dimensions:
    • Height: 22mm
    • Length: 66mm
    • Width: 42mm
  • Other specifications:
    • Number of plugs: 2
    • Number of pins: 6
